Procedure 2. Al Front Frame/Al8 CRT
Warning
The voltage potential at A6AlW3 is +9 kV. Failure to discharge A6AlW3
correctly may result in severe electrical shock to personnel and damage to the
instrument.
HIGH-VOLTAGE PROBE
A6AlW3
’ \
GROMMET
A6A-1 W3
SK123

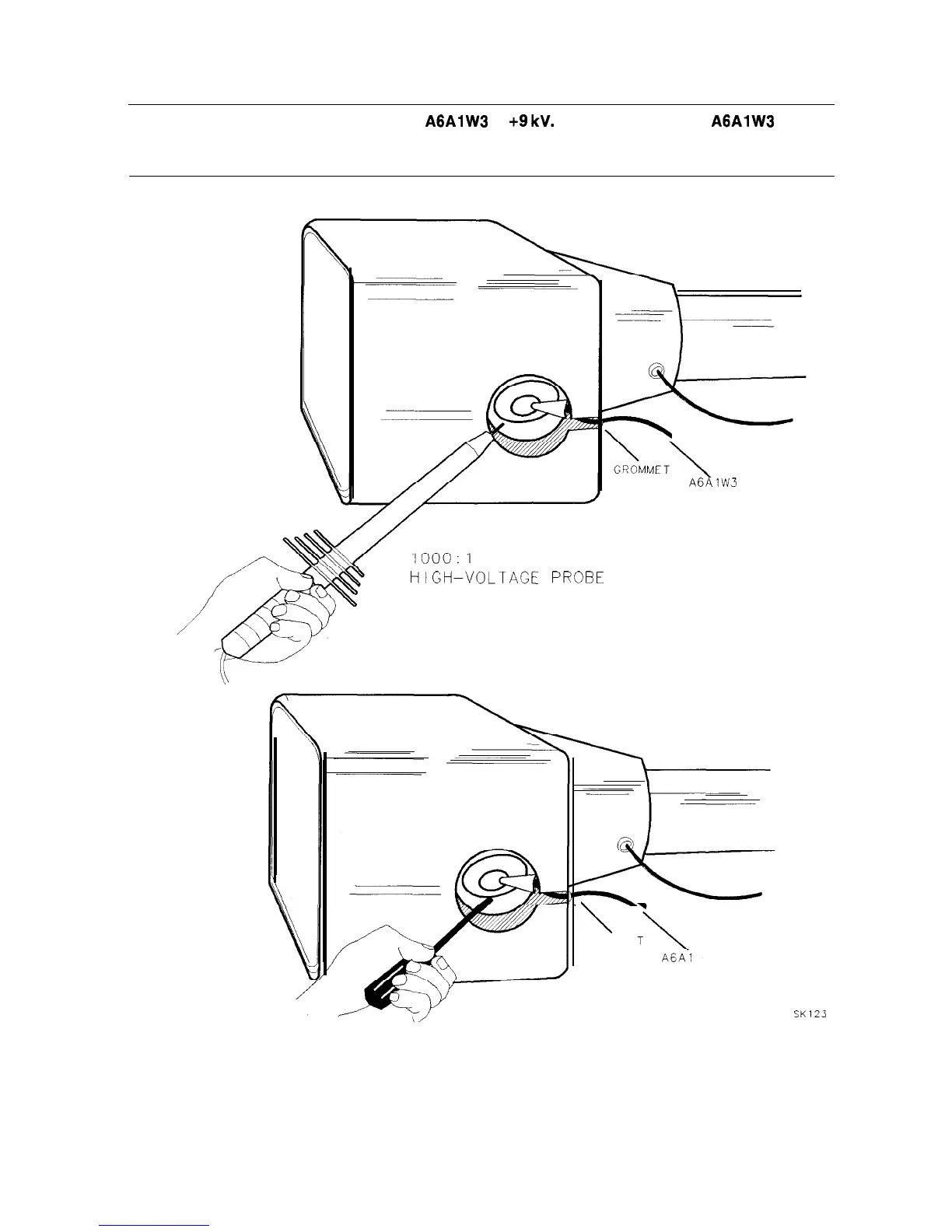

Figure 3-2. Discharging the Post-Accelerator Cable
