HP 8560A

A2
CONTROLLER
(TAM TEST
CONNECTOR)

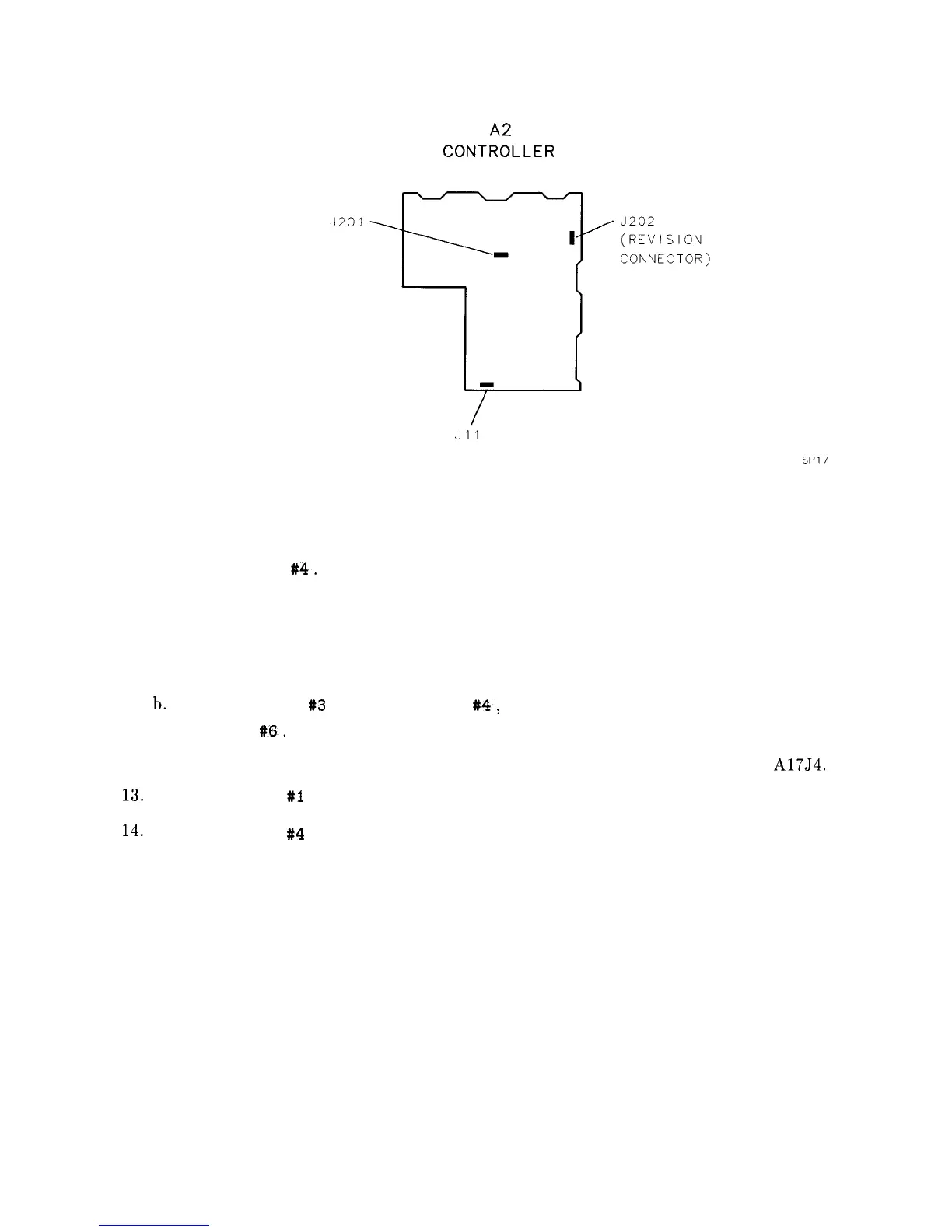

Figure 9-1. A2 Test Connectors
SPi7
10. Press SOFT KEY #4. The results will be sent to the printer.
11. If a failure is indicated in any of these tests, the fault lies on the A2 Controller assembly.
To obtain more information:
a. Press the down arrow key one less time than the test number. (For example, press it
twice for the third test on the list.)
b. Press SOFT KEY t3 , then SOFT KEY 64, and when the printout is complete,
SOFT KEY #6.
12. If no failures were indicated in testing the A2 Controller, move the probe cable to A17J4.
13. Press SOFT KEY #I and wait five seconds.
14. Press SOFT KEY #4 . The results will be sent to the printer.
15. If no failure is indicated in the printout, refer to “High Voltage Supplies” in Chapter 12.
Controller Section 9-3
