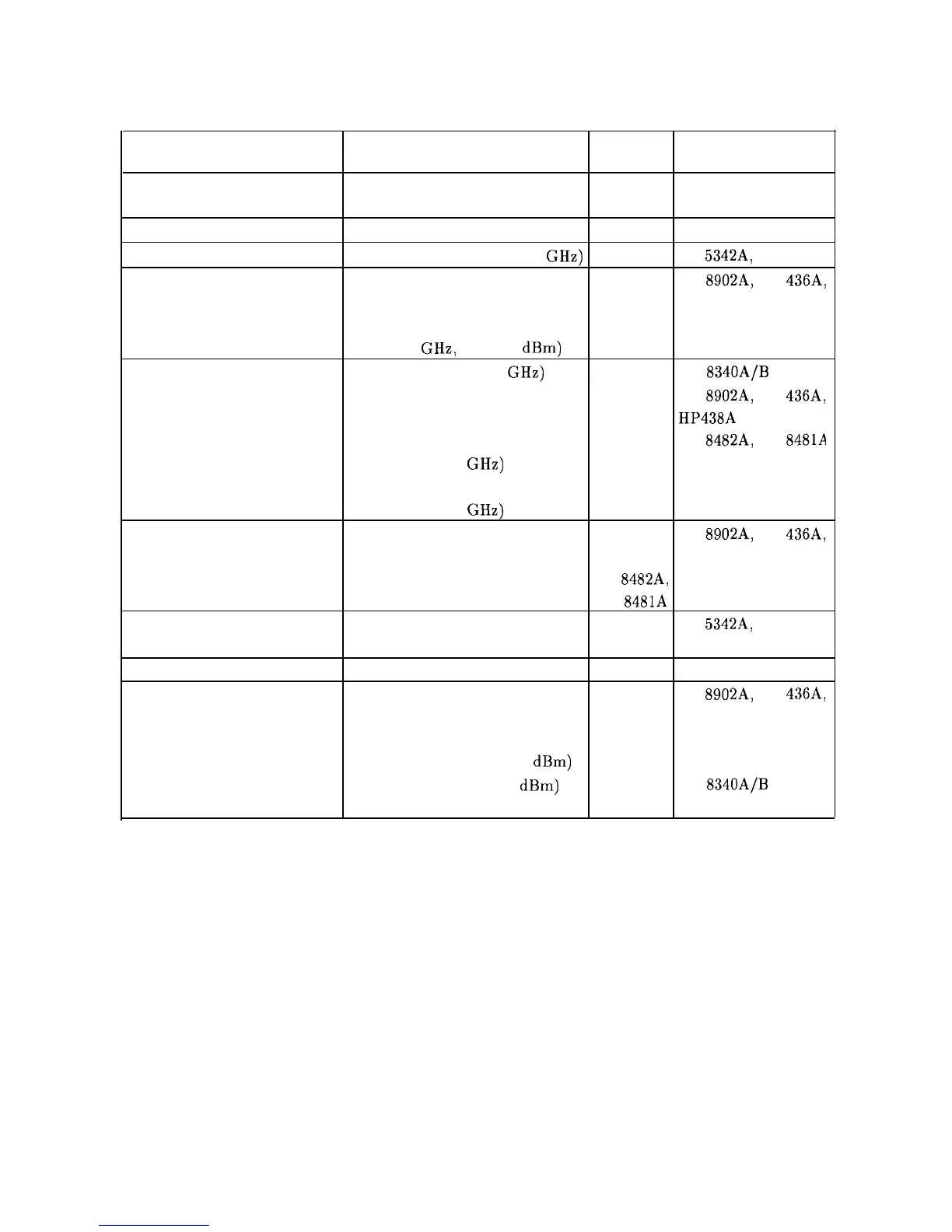

Table 2-5. Required Test Equipment for TAM (continued)
Adjustment
Equipment Used Required
Recommended
Model
Model
6. Log Fidelity
Synthesizer/Level Generator HP 3335A
Test Cable BNC
HP 10503A
7. Sampling Oscillator
Manual Probe Cable
8. YTO
Frequency Counter (3 to 6.8 GHz)
HP 5342A, HP 5343A
9. LO Distribution Amplifier Power Meter
HP 8902A, HP 436A,
HP 438A
Power Sensor
HP 8485A
(3 to 6.8 GHz, 10 to 20 dBm)
10. Low Band Flatness
Source (10 MHz to 2.9 GHz)
HP 8340A/B
Power Meter
HP 8902A, HP 436A,
HP438A
Power Sensor
HP 8482A, HP 8481A
(10 MHz to 2.9 GHz)
Power Splitter
HP 11667B
(10 MHz to 2.9 GHz)
11. Calibrator Amplitude
Power Meter
HP 8902A, HP 436A,
HP 438A
Power Sensor
HP 8482A,
HP 8481A
12. 10 MHz Reference
Frequency Counter
HP 5342A, HP 5343A
Oscillator
(9 to 11 MHz)
13. External Mixer Bias
Manual Probe Cable
14. External Mixer Amplitude Power Meter
HP 8902A, HP 436A,
HP 438A
Power Sensor
HP 8484A
(310.7 MHz,
-25 to -35 dBm)
Source (310.7 MHz, -30 dBm)
HP 8340A/B
