Manual 273

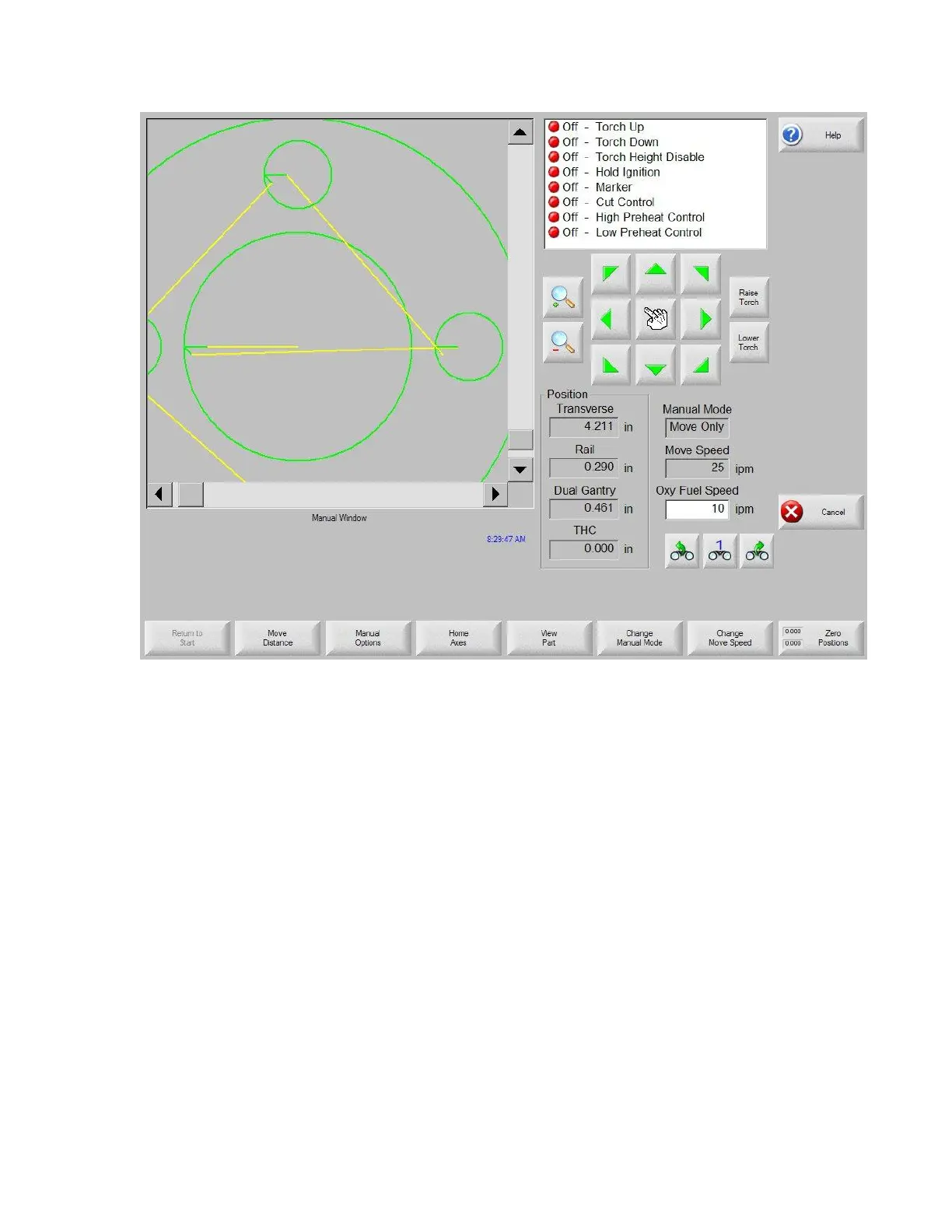

While the scroll bars are displayed, the view of the machine can be shifted horizontally and vertically
by holding down the scroll bar and moving in the desired direction. This mode is useful in normal
cutting to closely follow the cut path while in zoom.
While cutting in sheet view, the control will automatically scroll to keep the cut location centered within
the view screen. This feature is useful in normal cutting to closely follow the cut-path while zoomed
in.
View Sheet is more useful when proper Plate Size values have been entered in Cutting setups and
when the machine has been previously homed. Viewing of large parts when fully zoomed during a
cut may not allow the part to be fully drawn on screen before moving onto the next view location.
This may appear as a flashing view screen and may be corrected by zooming out to get a larger view
area.
Change Manual Mode
This soft key changes the control Manual Mode from Move Only to Rip Cut and vice versa. Pressing
this soft key also causes the second soft key from the left to change function from Move Distance to
Cut Distance. Rip Cutting is described in more detail below.
Change Move Speed
Is used to toggle through the four Move Speeds available. The four Move Speeds are the Maximum
Machine Speed, High Jog Speed, Medium Jog Speed and Low Jog Speed from the Speeds setups.
