9
D-STAR OPERATION <ADVANCED>
9-5
When a DV call is received, the calling station and the
repeaters call signs are stored in RX History.
Up to 50 calls can be stored. When you receive the 51st
call, the oldest history call will be deleted. The stored
call signs can be displayed in the following way.

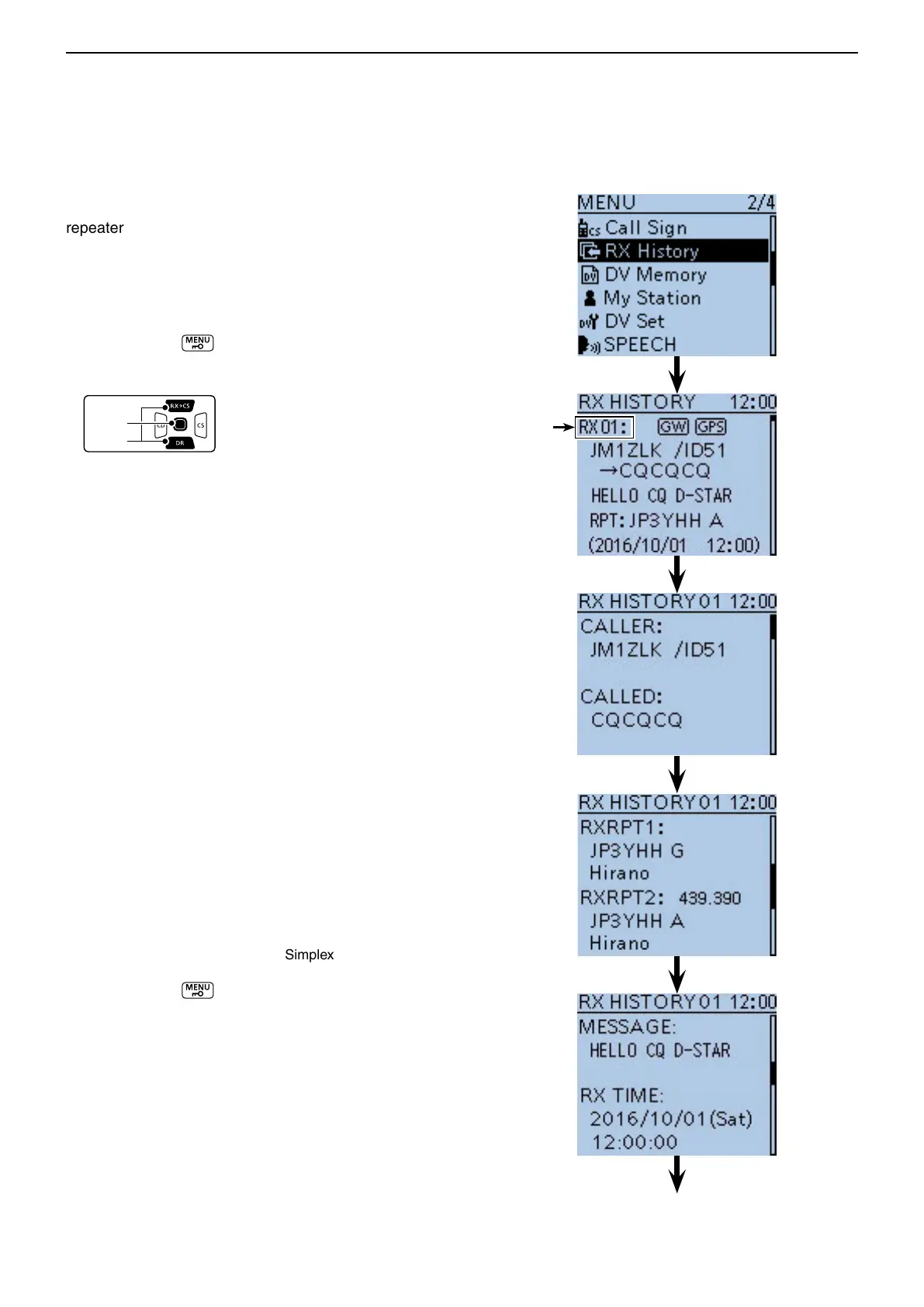

D Viewing the RX History screen
q Push [MENU] .
w Push D-pad() to select the root item (“RX History”),
and then push D-pad(Ent).
D-pad
()
(Ent)
e Push D-pad() to select an RX history number be-
tween “RX01” and “RX50.
In addition to the RX history number, the call signs of
the caller and called station, RX message, Repeater call
sign of the called station, received date and time are dis-
played on the LCD.
“GW” appears when a gateway call is received.
“GPS” appears when the received call includes GPS po-
sition data.
“UP” appears when a repeater uplink signal is received.
r Push D-pad(Ent) to show the contents of the RX his-
tory.
t Push D-pad() to view other RX history content.
CALLER: Shows the call sign of the caller station and
any note entered after the call sign.
CALLED: Shows the call sign of the called station.
RXRPT1*: Shows the call sign of the repeater that was
accessed by the caller station. If it was a call
through a gateway and the internet, this item
displays the gateway repeater call sign of
your local area repeater.
Rx RPT2*: Shows the call sign of the repeater you re-
ceived the call from.
MESSAGE: Shows any message included in the received
call.
RX TIME: Shows the date and time the call was re-
ceived.
* “FREQUENCY” appears instead of these items when the
call was not through a repeater (Simplex call), to show the
frequency that was used.
y Push [MENU] to exit the MENU screen.
Viewing received call signs
When the received call includes the GPS
position data, it is displayed after RX TIME.
RX history
number
Previous view
