In the DV mode, you can transmit GPS data in the
NMEA (DV-G) TX mode.
D Setting the GPS data sentence

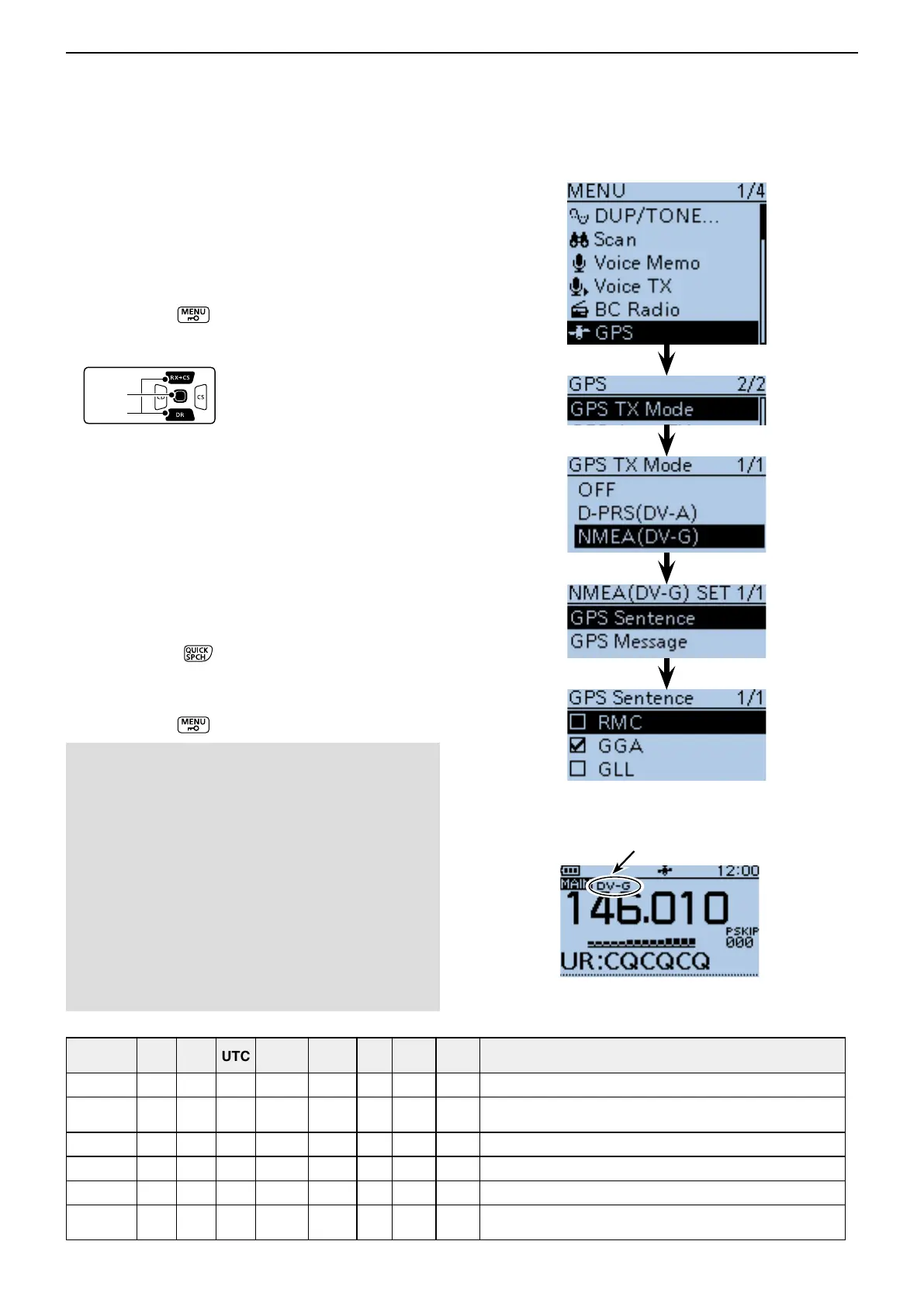

Set the GPS sentence to transmit in the NMEA (DV-G)
TX mode.
q Push [MENU] .
w Push D-pad() to select the root item (“GPS”), and
then push D-pad(Ent).
e Push D-pad() to select “GPS TX Mode,” and then
push D-pad(Ent).
r Push D-pad() to select “NMEA(DV-G),” and then
push D-pad(Ent).
t Push D-pad() to select “GPS Sentence,” and then
push D-pad(Ent).
• The GPS Sentence screen is displayed.
y Push D-pad() to select the desired GPS sentence,
and then push D-pad(Ent) to turn it ON or OFF.
• The selectable GPS sentences are RMC, GGA, GLL,
VTG, GSA and GSV. The GGA sentence is set to ON as
the default GPS sentence.
• Touch [QUICK]
, and then push D-pad(Ent) to set the
sentence as the default.
u Repeat step y to set the GPS sentence.
• A maximum of four GPS sentences can be set at a time.
i Push [MENU] to exit the Menu screen.
Sentence
Lon
/Lat
Alt UTC
Date
(UTC)
Status
2D
/3D
COG
(True)
SOG
(knot)
Others
RMC
✔ ✔ ✔ ✔ ✔ ✔
Mode Indicator,
GGA
✔ ✔ ✔ ✔
Number of satellites in use, HDOP, Geoidal separation,
Age of Differential GPS data
GLL
✔ ✔ ✔
Mode Indicator
VTG
✔ ✔
COG (Magnetic north), SOG (km/h), Mode Indicator
GSA
✔ ✔
ID numbers of satellites used in solution, PDOP, HDOP, VDOP
GSV
Total number of sentences, Sentence number, Total number of sat-
ellites in view, Satellite information (ID, Elevation, Azimuth, S/N)
• Contents of GPS sentence
■ Transmitting NMEA (DV-G) data
• Set the GSV sentence to OFF when sending the
GPS message to a conventional digital transceivers
(IC-2820H, IC-E2820, ID-800H, IC-91AD, IC-E91,
IC-V82, IC-U82, IC-2200H).
The GSV sentence is incompatible with them.
• If “GPS Select” is set to “Manual,” the transceiver au-
tomatically sets the NMEA sentence and transmits it
according to the position data in “Manual Position.”
(p. 16-32)
(GPS > GPS Set > Manual Position)
• Please note that if “GPS Auto TX” is set to any other
setting than “OFF,” the data is automatically transmit-
ted according to the set time.
(GPS > GPS Auto TX)
• The display while transmitting GPS (DV-G)
When transmitted, the set GPS
sentence is transmitted.
“DV-G” appears if “NMEA (DV-G)”
is selected in the DV Mode.
