q BATTERY ICON
➥ Shows the capacity of the attached battery pack
in four levels. (p. 4-2)
Icon Battery status
The battery has sufficient capacity.
The battery is exhausted a little.
The battery is nearing exhaustion.
The battery is almost fully exhausted.
➥ “
” appears when the optional battery case is
attached. (p. 4-4)
w VOX ICON (p. 18-6)
Appears when the optional headset is connected
with the OPC-2006LS plug adapter cable, and the
VOX function is ON.
e OPERATING MODE ICONS (p. 5-9)
Shows the selected operating mode.
• DV, AM, FM and FM-N are selectable.
• “DV-A” or “DV-G” appears when D-PRS (DV-A) or NMEA
(DV-G) transmission is selected in the DV mode. (p. 10-
31)
r EMR/BK/PACKET LOSS/AUTO REPLY ICON
➥ “EMR” appears when the Enhanced Monitor Re-
quest (EMR) mode is selected. (p. 9-8)
➥ “BK” appears when the Break-in (BK) mode is se-
lected. (p. 9-7)
➥ “L” appears when Packet Loss has occurred.
(p. 9-14)
➥ “ ” appears when the Automatic Reply function
is selected. (p. 9-11)
t DUPLEX ICON (p. 15-5)
“DUP+” appears when plus duplex is selected, and
“DUP–” appears when minus duplex is selected.
y BC RADIO ICON (p. 6-2)
Appears when the BC radio is ON.
u GPS/GPS ALARM ICON
➥ Appears while GPS function is in use. (p. 10-2)
Stays ON when the GPS receiver is activated and
valid position data is received.
Blinks when invalid position data is being re-
ceived.
• GPS icons can be turned OFF in the Menu screen.
(p. 16-33)
➥ “ S” blinks instead of the GPS icon, when the
GPS alarm beeps. (p. 10-21)
i RECORD ICON (p. 11-2)
Appears while recording.
• “ ” appears while the transceiver is recording.
• “
” appears while the recording is paused.
o microSD ICON (Section 2)
➥ “ ” appears when a microSD card is inserted.
➥ “ ” and “ ” alternately blinks while accessing the
microSD card.
!0AUTO POWER OFF ICON (p. 16-93)
Appears when the Auto power OFF function is ON.

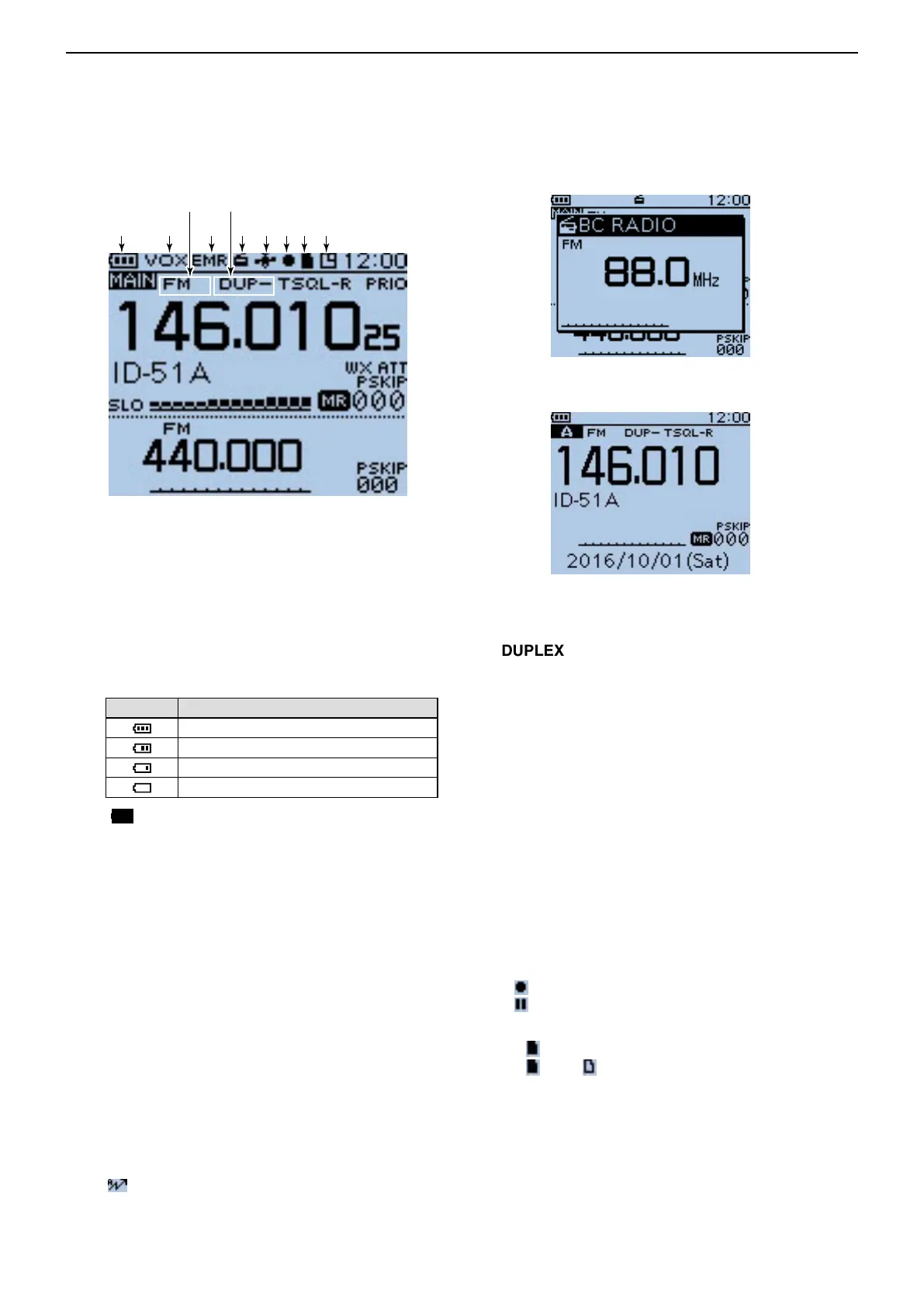

■ Function display
Single band display
BC Radio setting pop-up
window (Tuning mode)
Dual band display
q
w r y u io !0
te
