4.3.1.1. Recommended Reset Sequence
How to Enable Model 1
Choose the Intel Cyclone 10 GX Default Settings for the T
r
ansceiver PHY R
eset
Controller IP
. This populates the reset duration fields with the correct values required
by the transceiv
er reset sequencer (TRS).

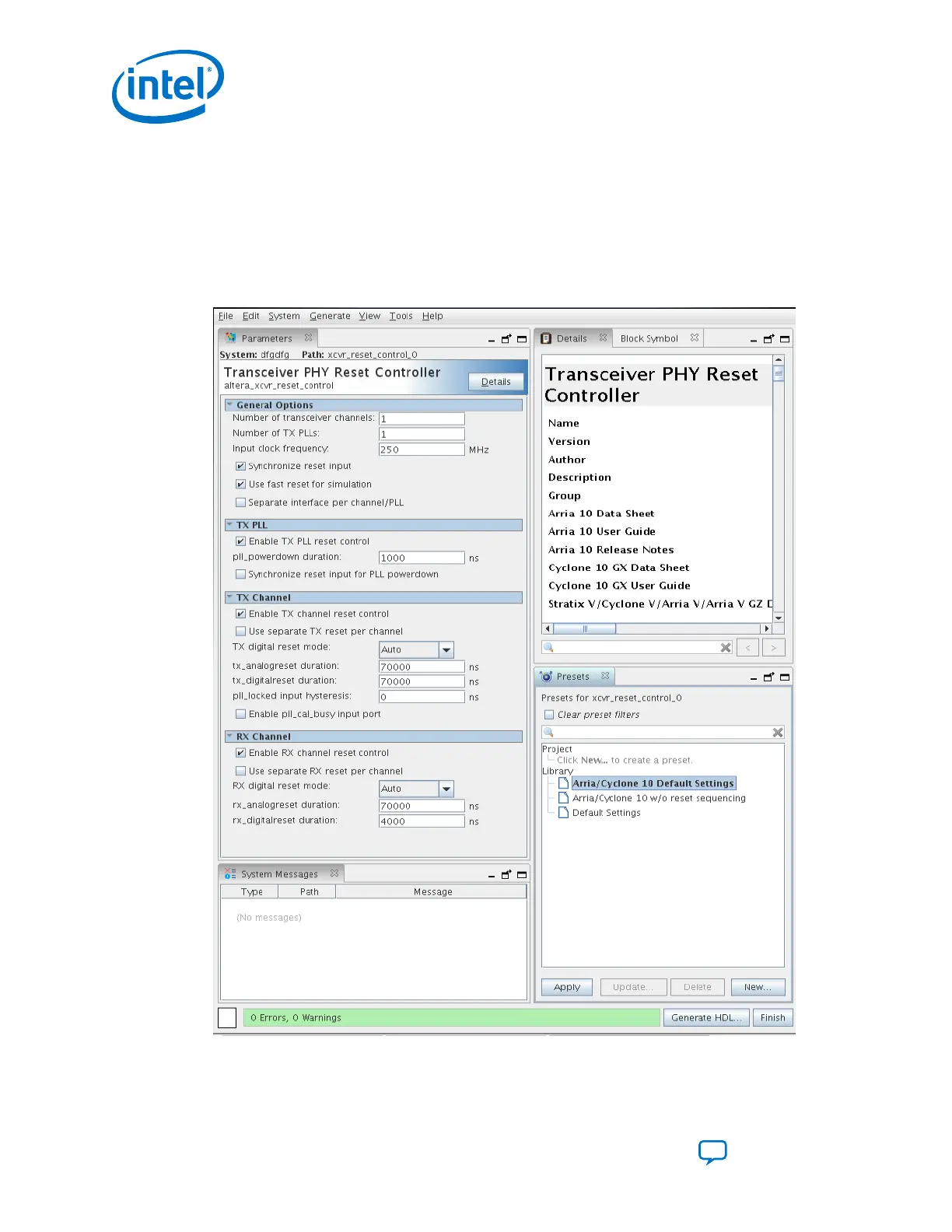

Figure 147.
Cyclone 10 GX Default Settings Preset
4. Resetting Transceiver Channels
UG-20070 | 2018.09.24
Intel
®
Cyclone
®
10 GX T
ransceiver PHY User Guide
Send Feedback
246
245
247
Table of Contents
