Intel Cyclone 10 GX User Manual

Clock Data Recovery in Auto Lock Mode
The step numbers correspond to the numbers in the following figure:
1.
Assert rx_analogreset and rx_digitalreset. Ensure that rx_cal_busy is
low. You must reset the PCS by asserting rx_digitalreset every time you
assert rx_analogreset.
2.
Deassert rx_analogreset after a minimum duration of 70 μs.
3.
Ensure rx_is_lockedtodata is asserted for t
LTD
(minimum of 4 μs) before
deasserting rx_digitalreset.

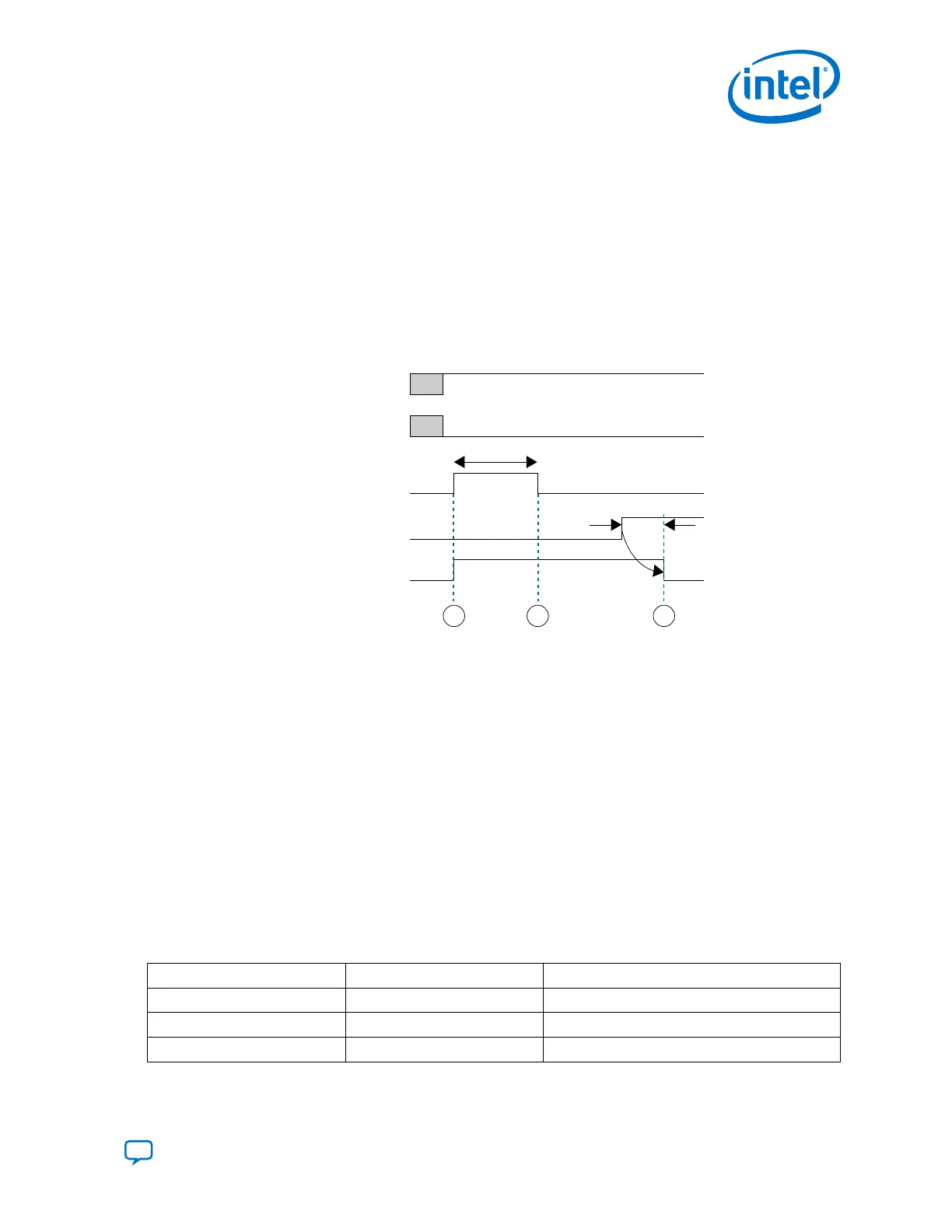

Figure 150. Resetting the Receiver During Device Operation (Auto Mode)
Device Power Up
rx_cal_busy
rx_analogreset
rx_is_lockedtodata
rx_digitalreset
1 2 3
t
req
t
LTD
min 4 μs
t
req
= 70 μs
Note:
rx_is_lockedtodata will toggle when there is no data at the receiver input.
rx_is_lockedtoref is a "do not care" when rx_is_lockedtodata is asserted.
Clock Data Recovery in Manual Lock Mode
Use the clock data recovery (CDR) manual lock mode to override the default CDR
automatic lock mode depending on your design requirements.
Related Information
"Transceiver PHY Reset Controller IP Core" chapter of the Altera Transceiver PHY IP
Core User Guide.
Refer to the description of the rx_digitalreset signal in the "Top-Level Signals"
table for information about using the manual lock mode.
Control Settings for CDR Manual Lock Mode
Use the following control settings to set the CDR lock mode:
Table 157. Control Settings for the CDR in Manual Lock Mode
rx_set_locktoref rx_set_locktodata CDR Lock Mode
0 0 Automatic
1 0 Manual-RX CDR LTR
X 1 Manual-RX CDR LTD
4. Resetting Transceiver Channels
UG-20070 | 2018.09.24
Send Feedback
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
249
