Intel Cyclone 10 GX User Manual

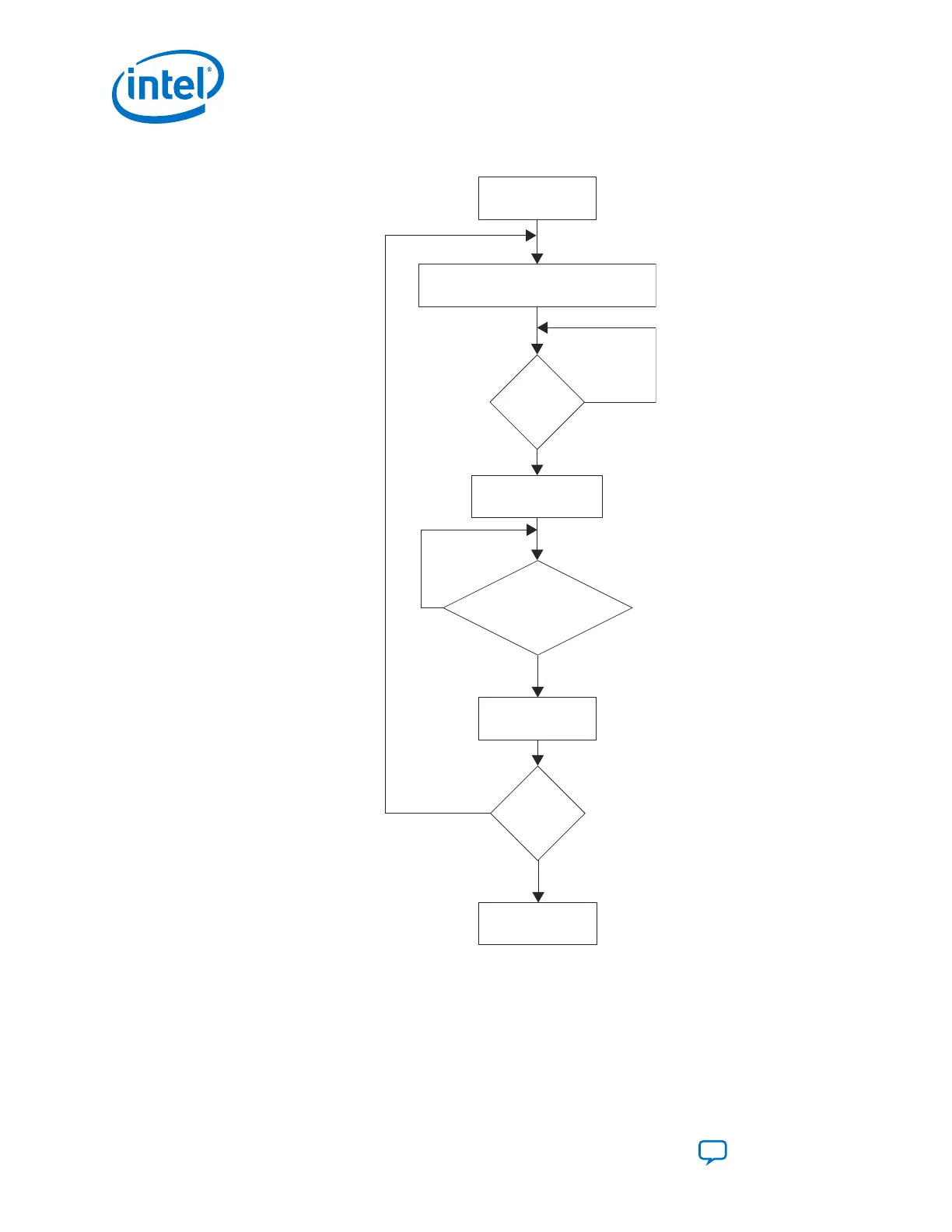

Figure 22. TX Soft Bonding Flow
Exit from
tx_digitalreset
Deassert all lanes tx_enh_frame_burst_en
Assert all lanes tx_enh_data_valid
Deassert all lanes
tx_enh_data_valid
All lanes
full?
no
yes
Any lane
send new frame?
tx_enh_frame
asserted?
no
yes
no
yes
All lanes
full?
TX FIFO pre-fill
completed
Wait for extra 16
tx_coreclkin cycles
The following figure shows that after deasserting tx_digitalreset, TX soft bonding
logic starts filling the TX FIFO until all lanes are full.
2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
Send Feedback
76
