Actions Yes No
Step 2

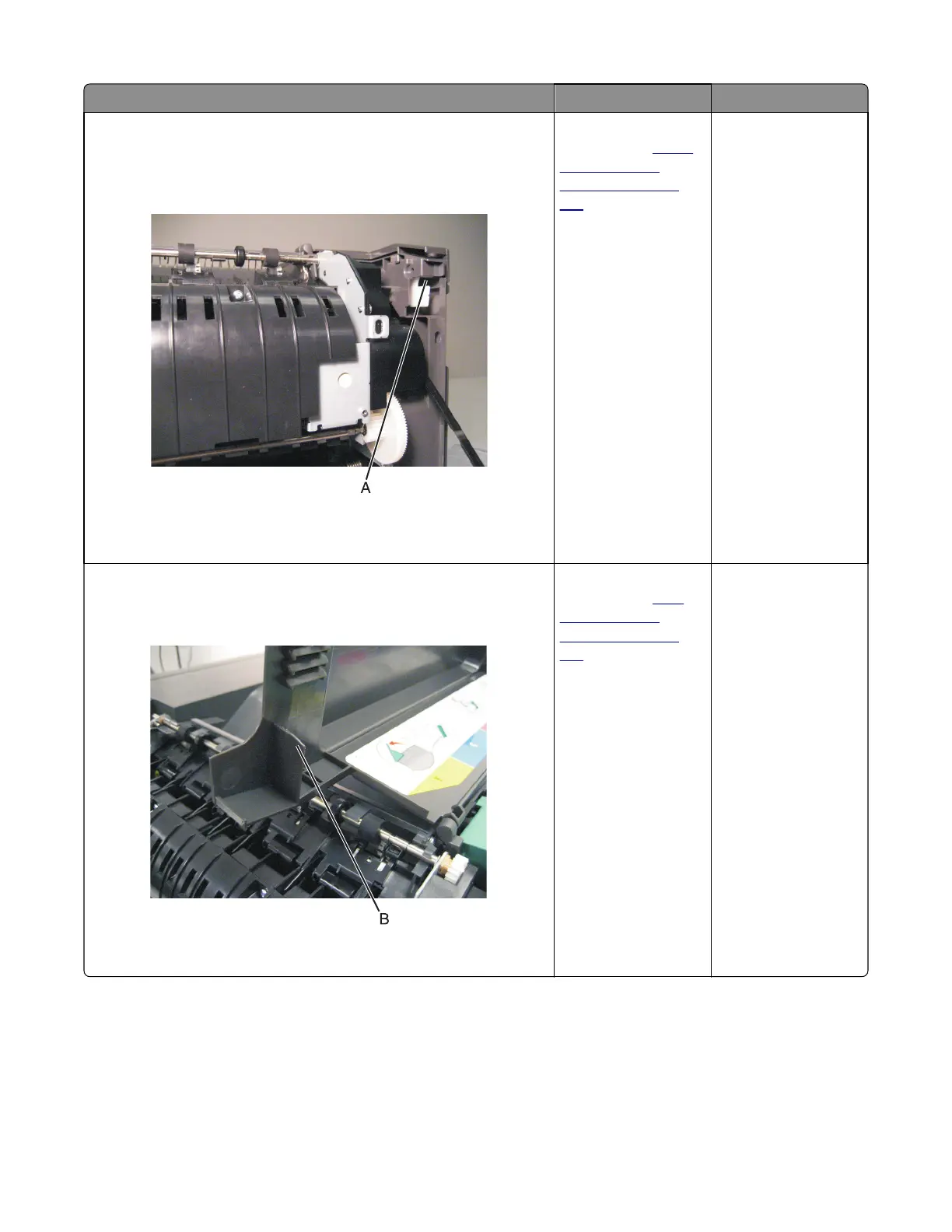

Open the front door, and check the thin, tall, plastic web (pivot plate) (A)
at the top right of the printer. With the other covers in place and closed,
the web interacts with switches in the door.
Open the toner cover, and check the motion of the wed. Is the web loose,
damaged, or missing?
Replace the right cover
assembly. See
“Right
cover assembly
removal” on page
256.
Go to step 3.
Step 3
Open the toner door, and inspect the vertical web that pushes and rotates
the pivot plate.
Is it damaged?
Replace the top cover
assembly. See
“Top
cover assembly
removal” on page
312.
Go to step 4.
7527
Diagnostic information
124
