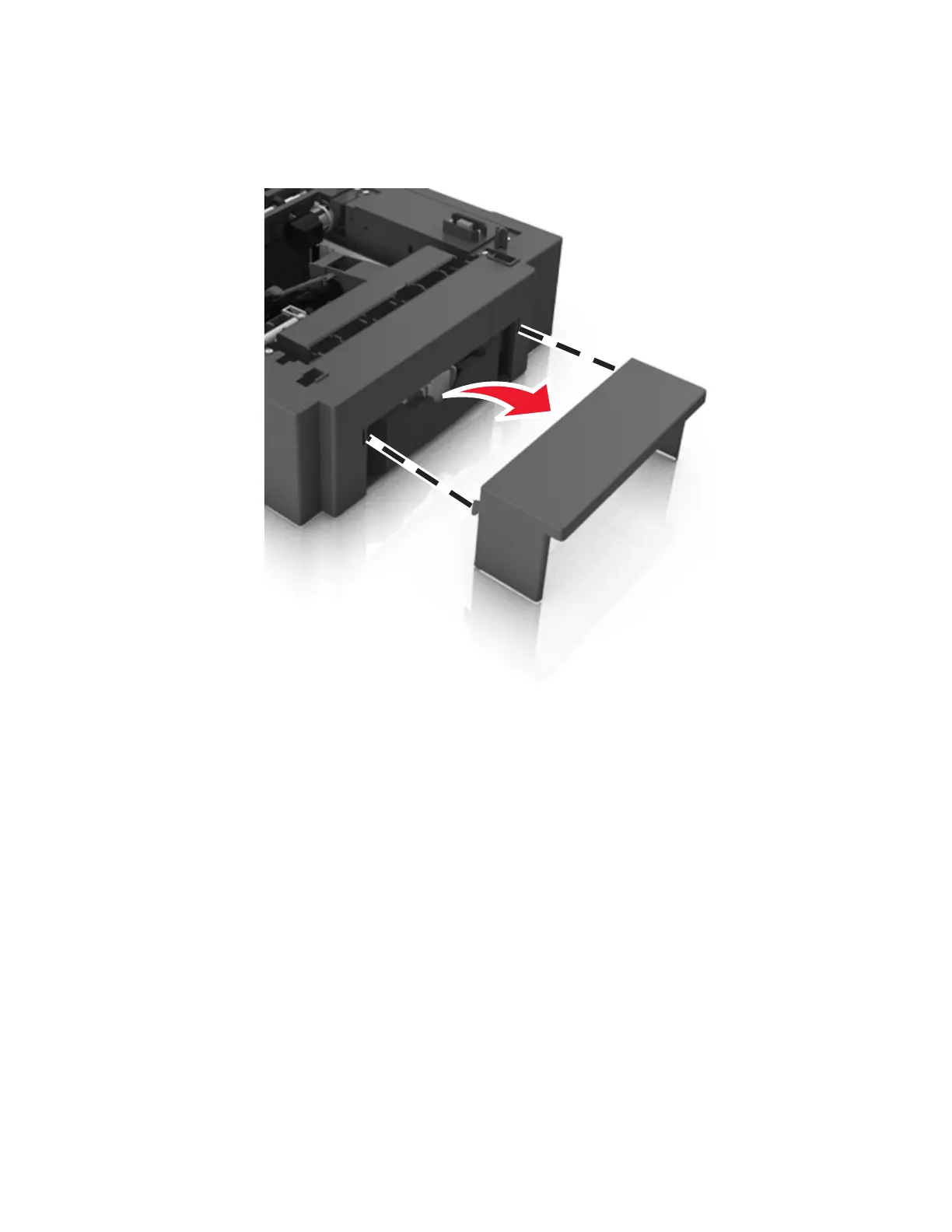

Dust cover removal

1 Slightly raise the dust cover.

2 Pull the dust cover to remove.

7527

Repair information

342
