Narrow media sensor flag removal

1 Open the front cover.

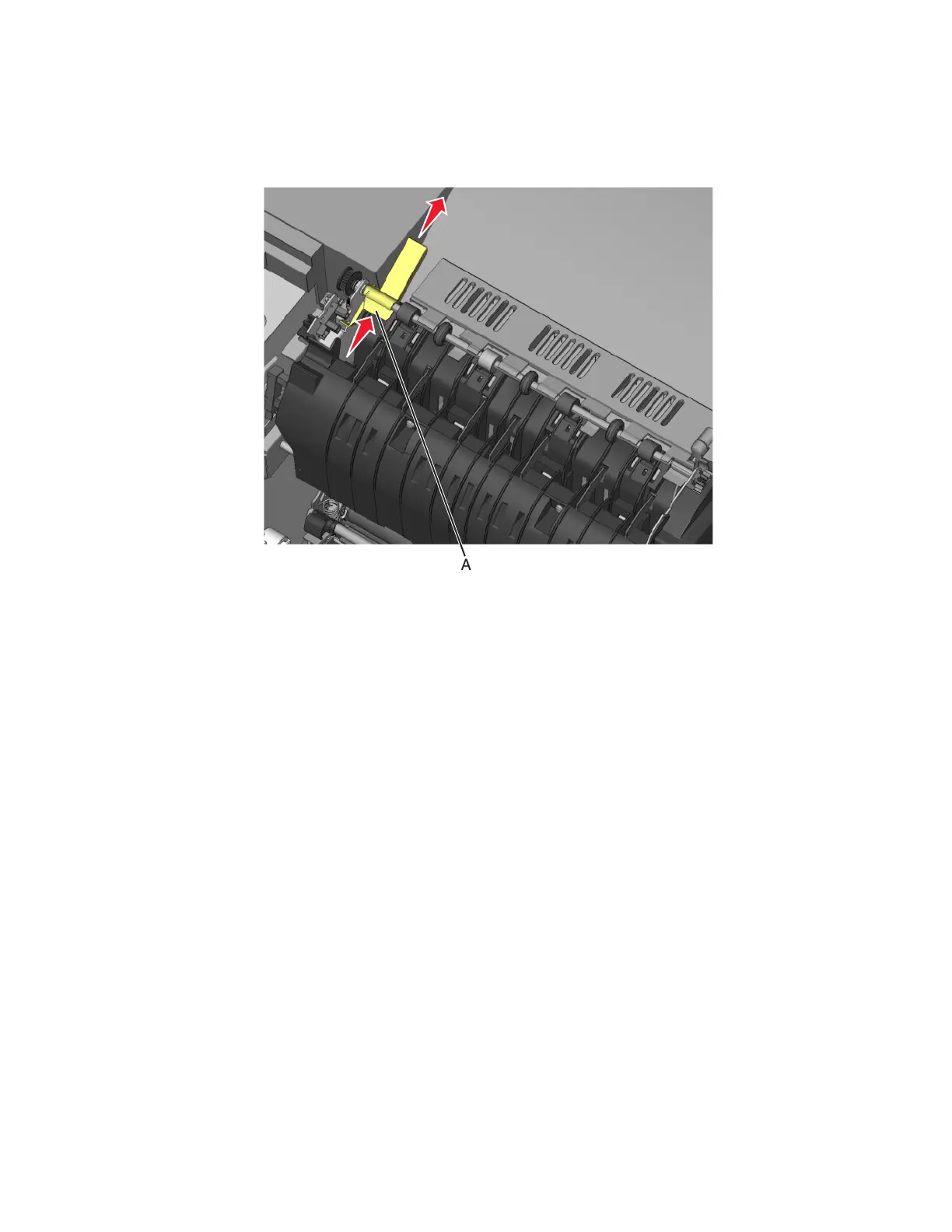

2 Press upward on the tab (A) to unsnap the narrow media sensor flag, and remove the flag.

Note: Be careful to not dislodge the sensor. Because of space, this flag should be installed on the fuser while the

fuser is out.
