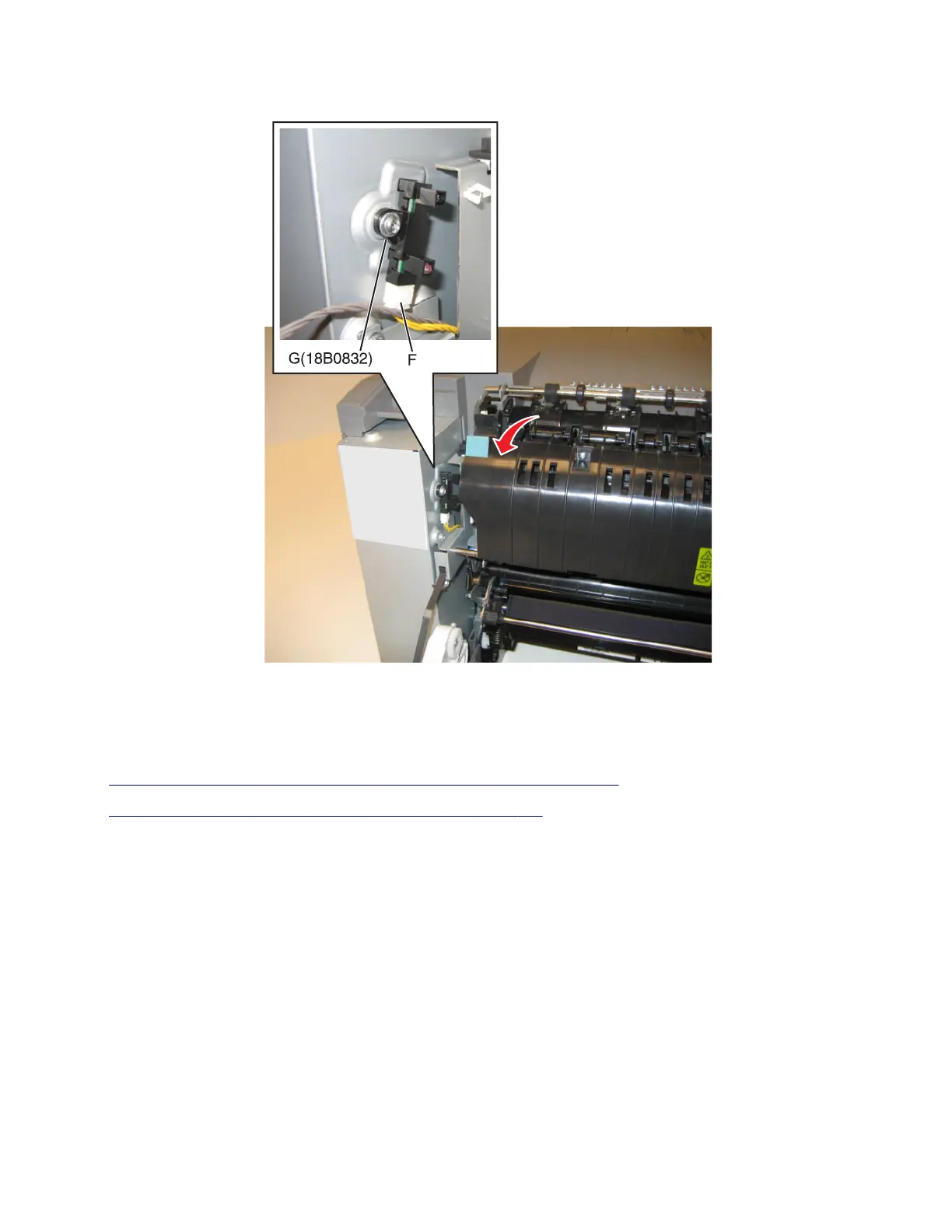

9 Remove the lower end of the sensor with a flat‑blade screwdriver, and gently pull the sensor from the frame.
Speaker removal
The speaker (only in the CX410 and CX510) is in the operator panel module. See the following topics:
1 “Operator panel removal (for CX310 and CX410 models only)” on page 276.
2 “Operator panel removal (for CX510 models only)” on page 283.
Right side removals
Right cover assembly removal
1 Open the toner supply door.
2 Open the front door.
7527
Repair information
256
