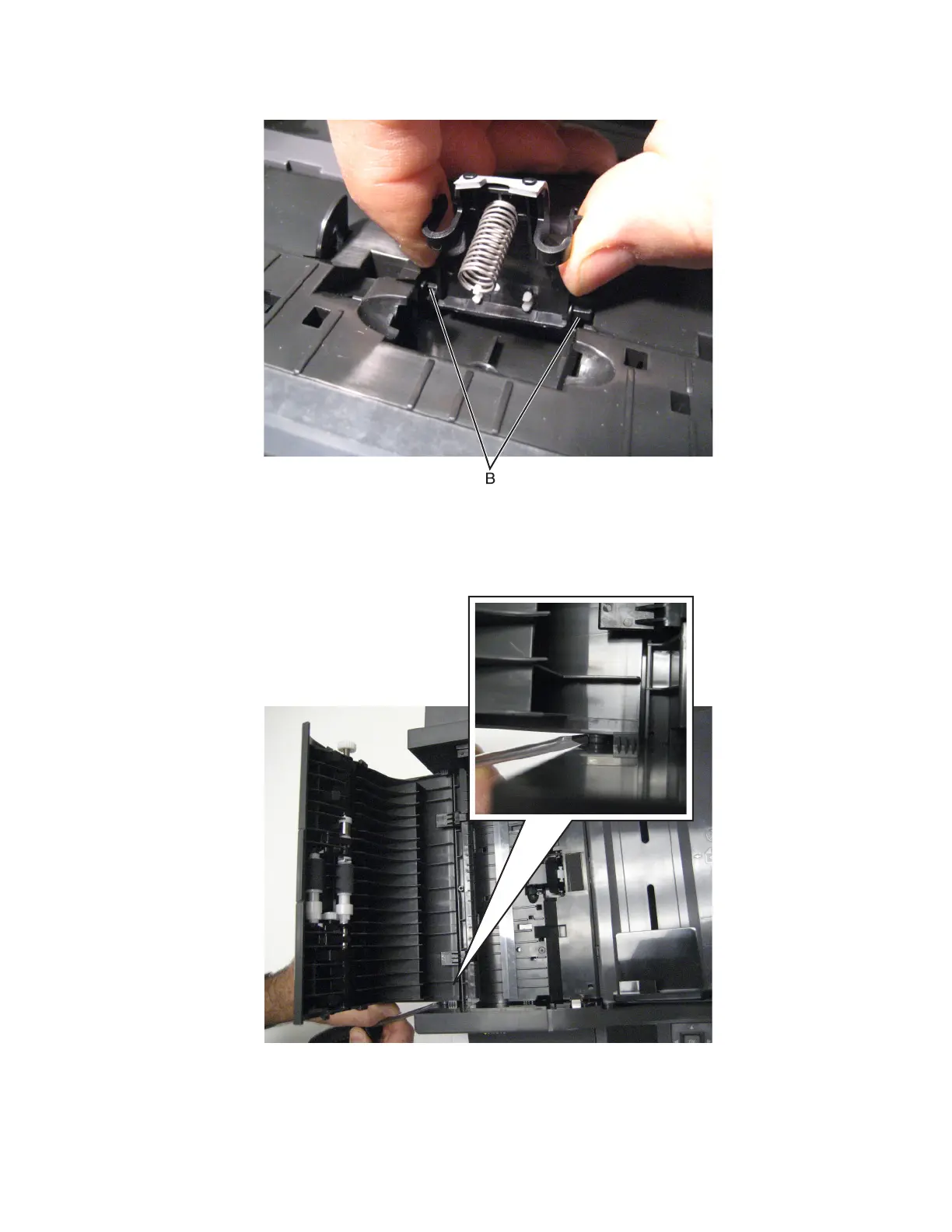

3 Disconnect the ADF separator pad tabs (B) from the printer, and remove.

Top cover ADF sheet feed removal

1 Separate the top cover sheet feed from the top of the printer.

7527

Repair information

330
