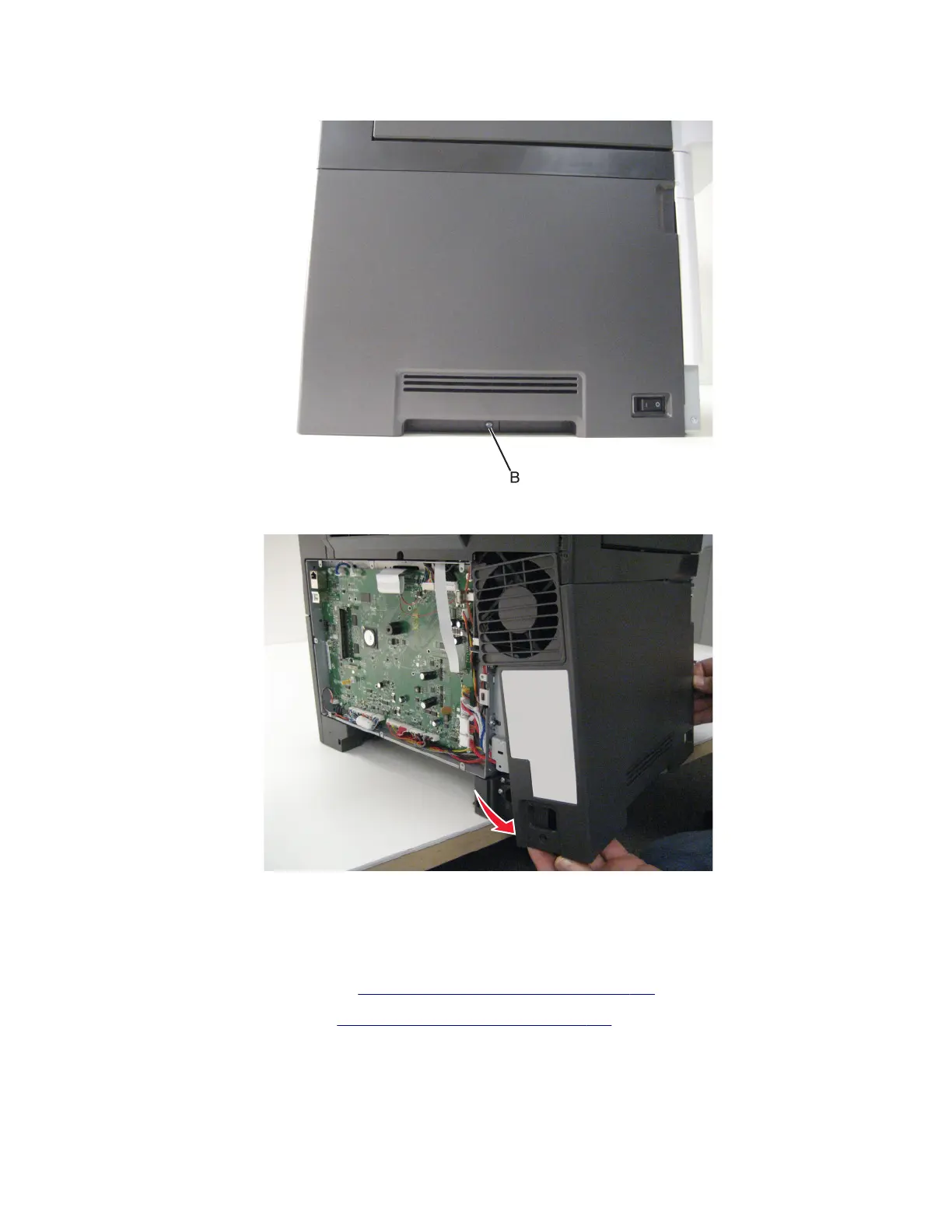

2 Remove the screw (B) beneath the right cover.
3 Position the right side of the printer over the edge of the table to have enough room to swing the right cover out.
4 Disconnect the right cover assembly from the right side of the printer, and remove.
EP drive assembly removal
1 Remove the left cover assembly. See “Left cover assembly removal” on page 246.
2 Remove the transfer module. See “Transfer module removal” on page 290.
