Output bin tray and exit bail removal

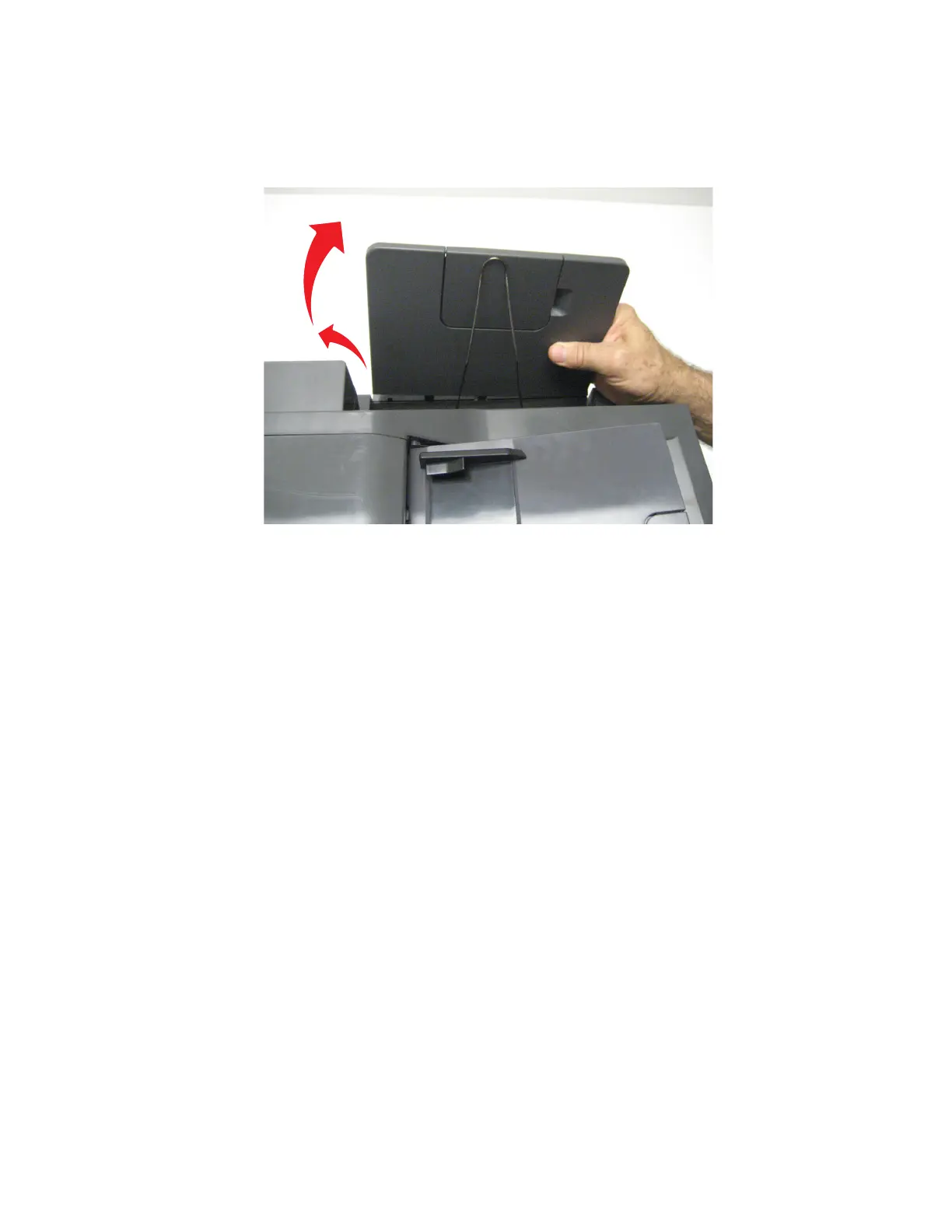

1 Rotate the output bin tray forward.

2 Lift the output bin tray, and remove.

7527

Repair information

316
