Lexmark CX310 - Bin-Full Flag Removal; Narrow Media Sensor Removal

Bin‑full flag removal
1 Lift the scanner assembly and lock it into the up position.

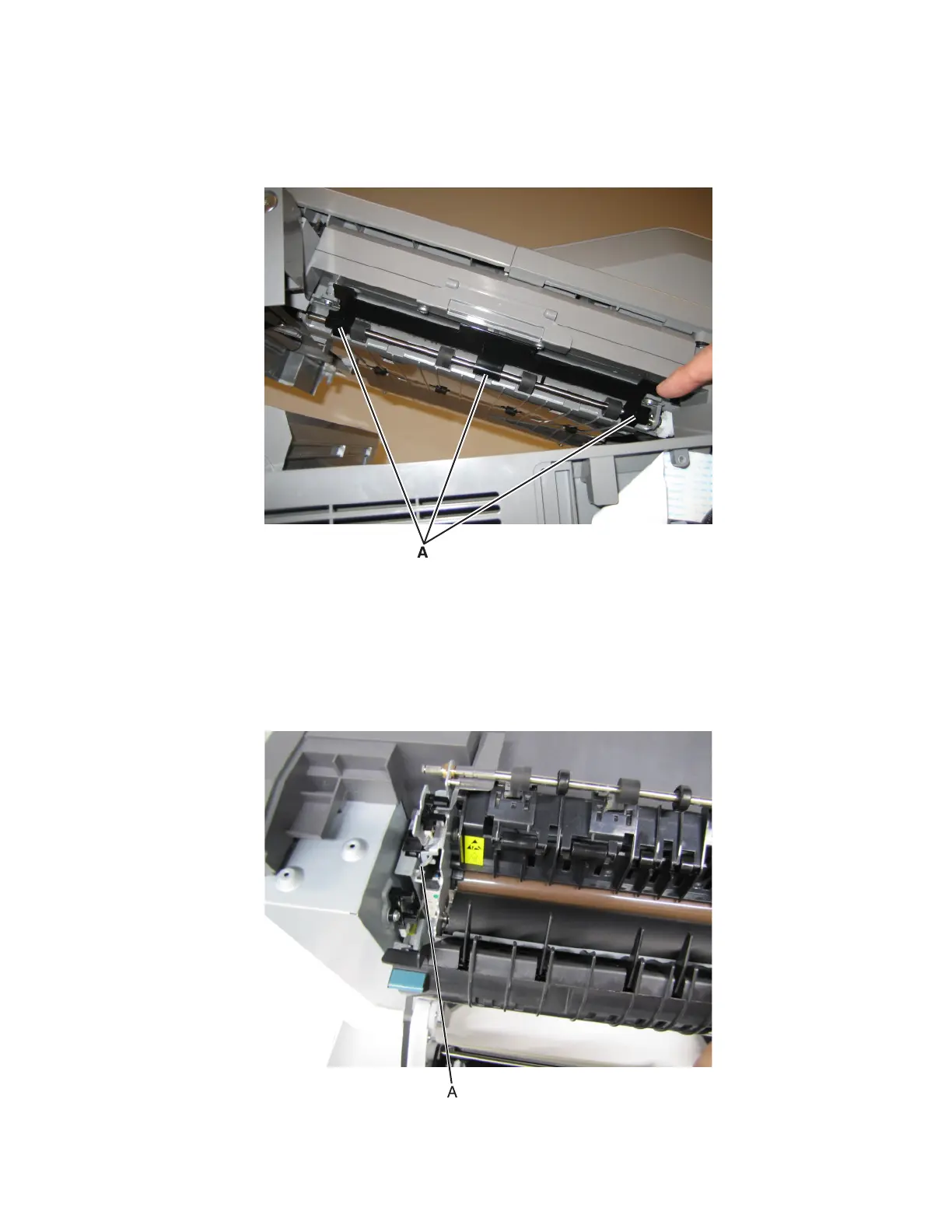

2 Gently disconnect the three snaps (A) from the rear shaft of the redrive unit.
Narrow media sensor removal
1 Open the front cover.
2 Unroute the cable (A) from its retainer.
Note: Be sure to pay close attention to the routing of the cable for re‑installation.
7527
Repair information
321
