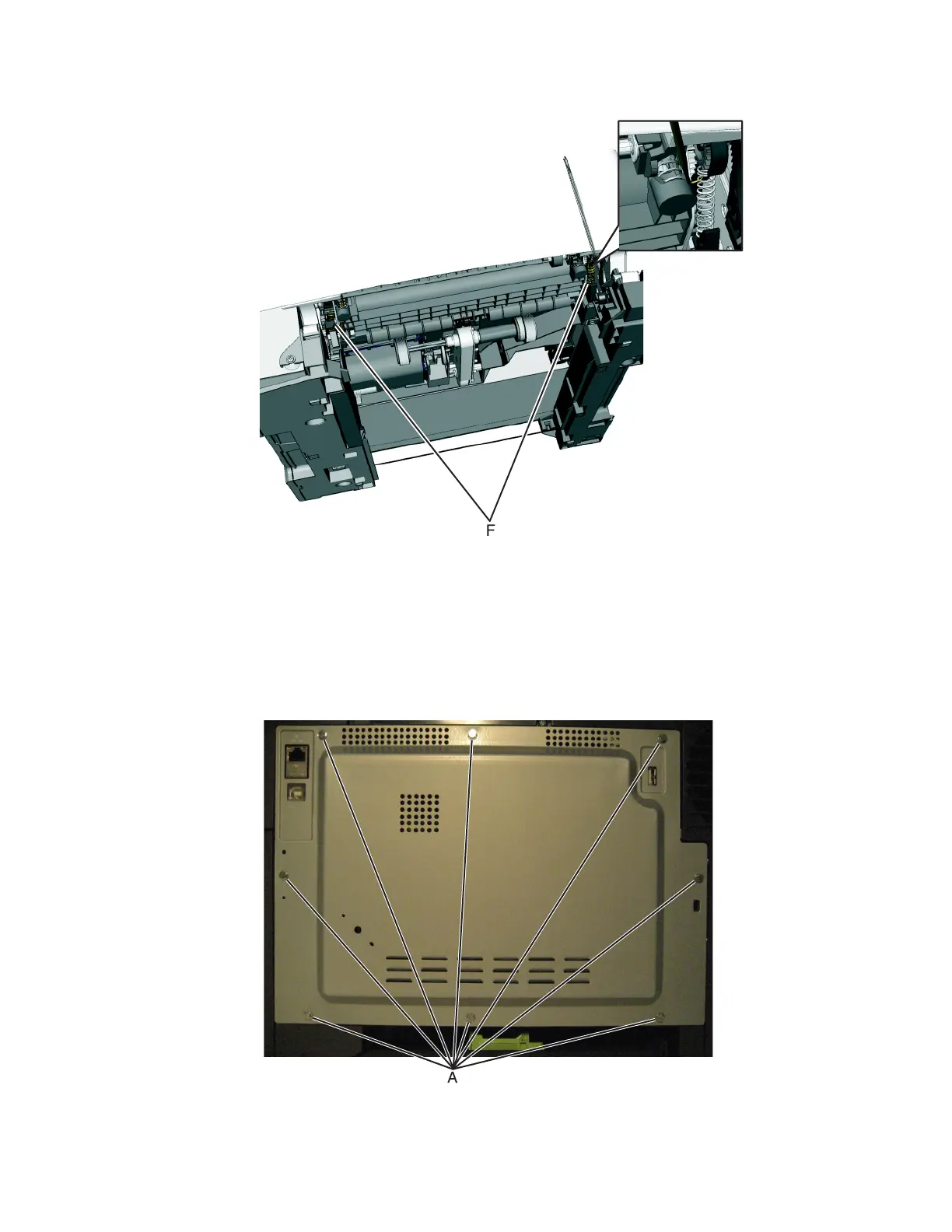

h Install the right spring (F).

Rear side removals

Rear cover removal

1 Remove the eight screws (A).

7527

Repair information

307
