Lexmark CX310 - Page 308

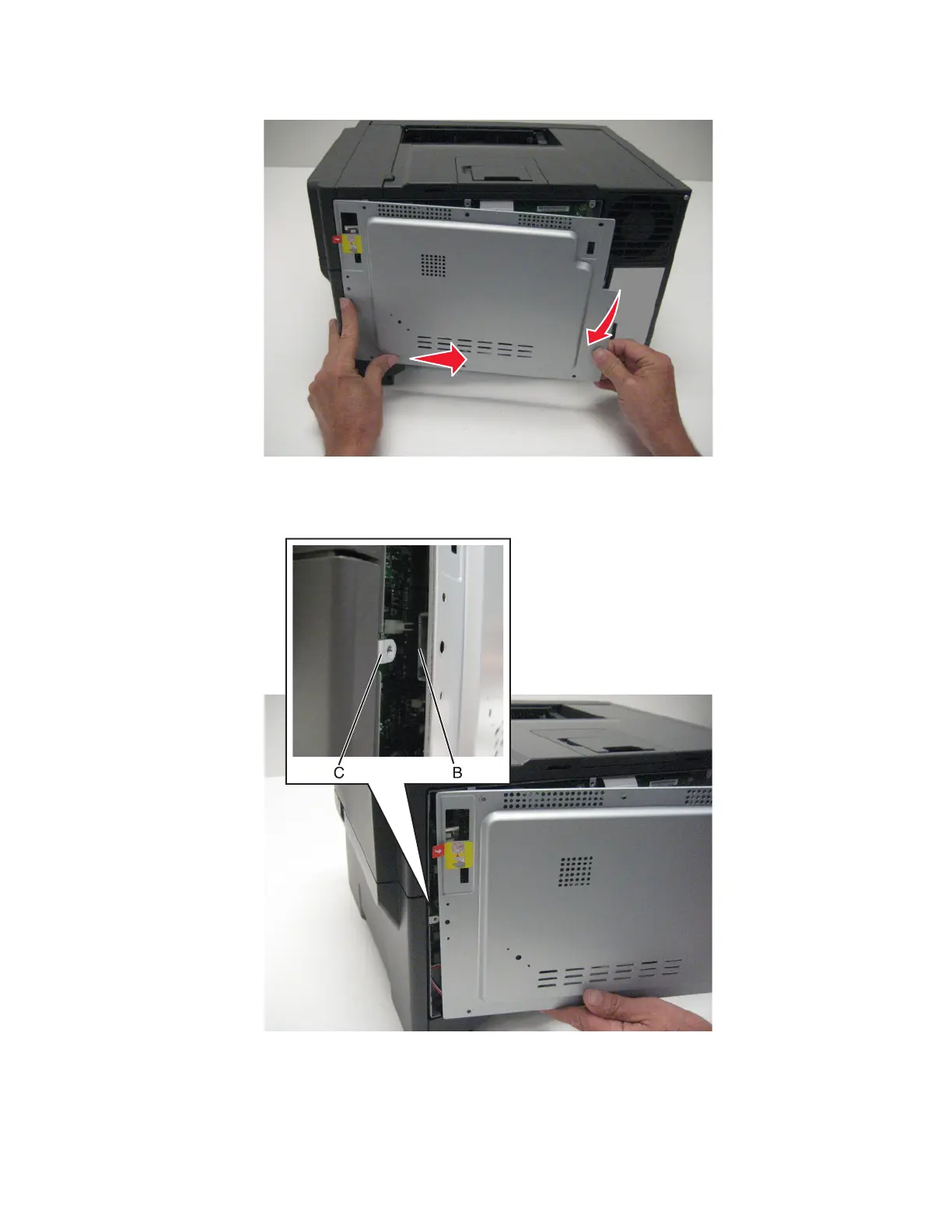

2 Swing the side of the cover out, and slide to the right to remove.
3 Remove the rear cover.
Installation note: When installing the rear cover, be sure that the ear (C) is inserted into the bracket (B).
7527
Repair information
308
