650‑sheet duo drawer assembly removal

Warning—Potential Damage: Make sure the printer is turned off before removing the drawer assembly.

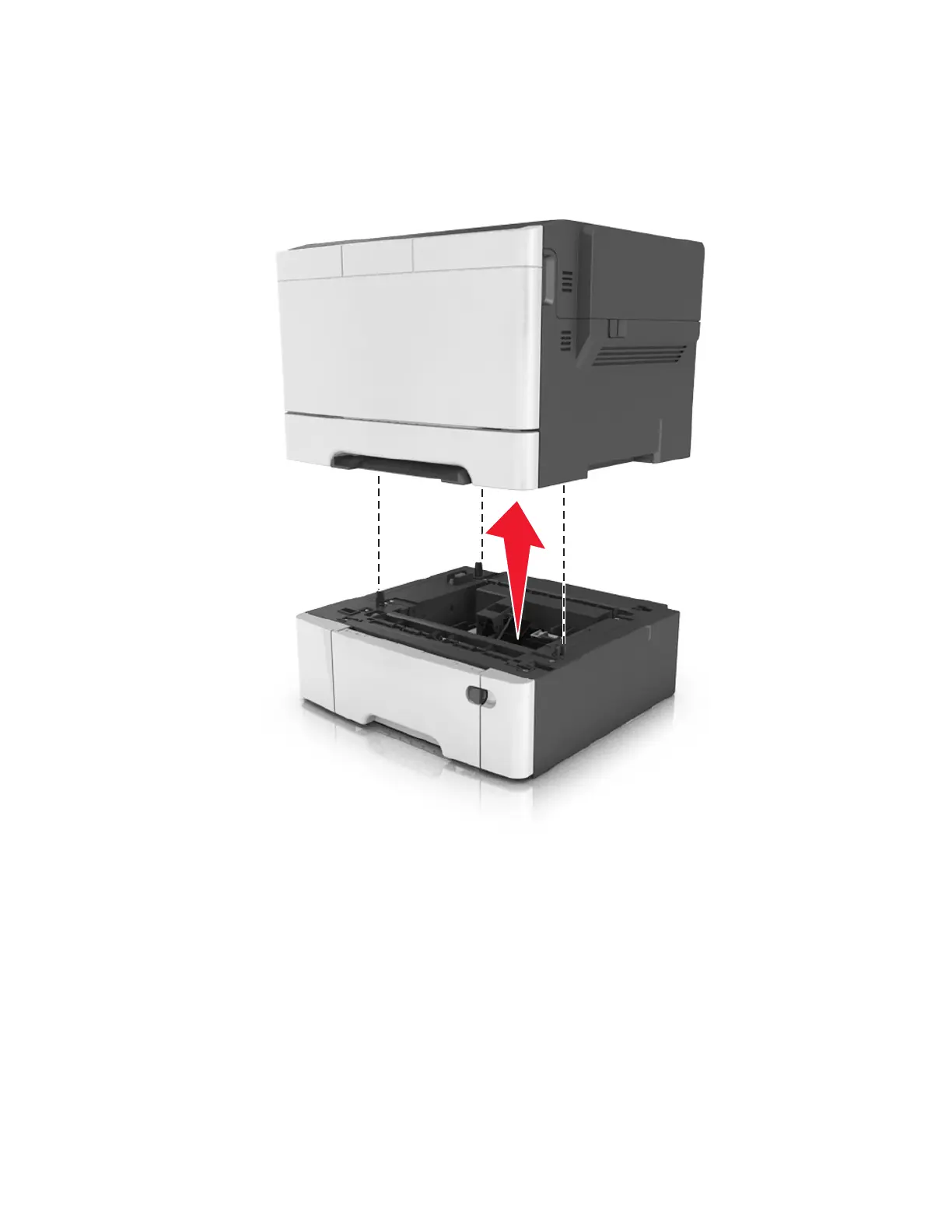

1 Carefully lift the printer, and set it aside on a flat surface.

2 Remove the 650‑sheet drawer assembly.

7527

Repair information

341
