Lexmark CX310 Service Manual

Installation notes:

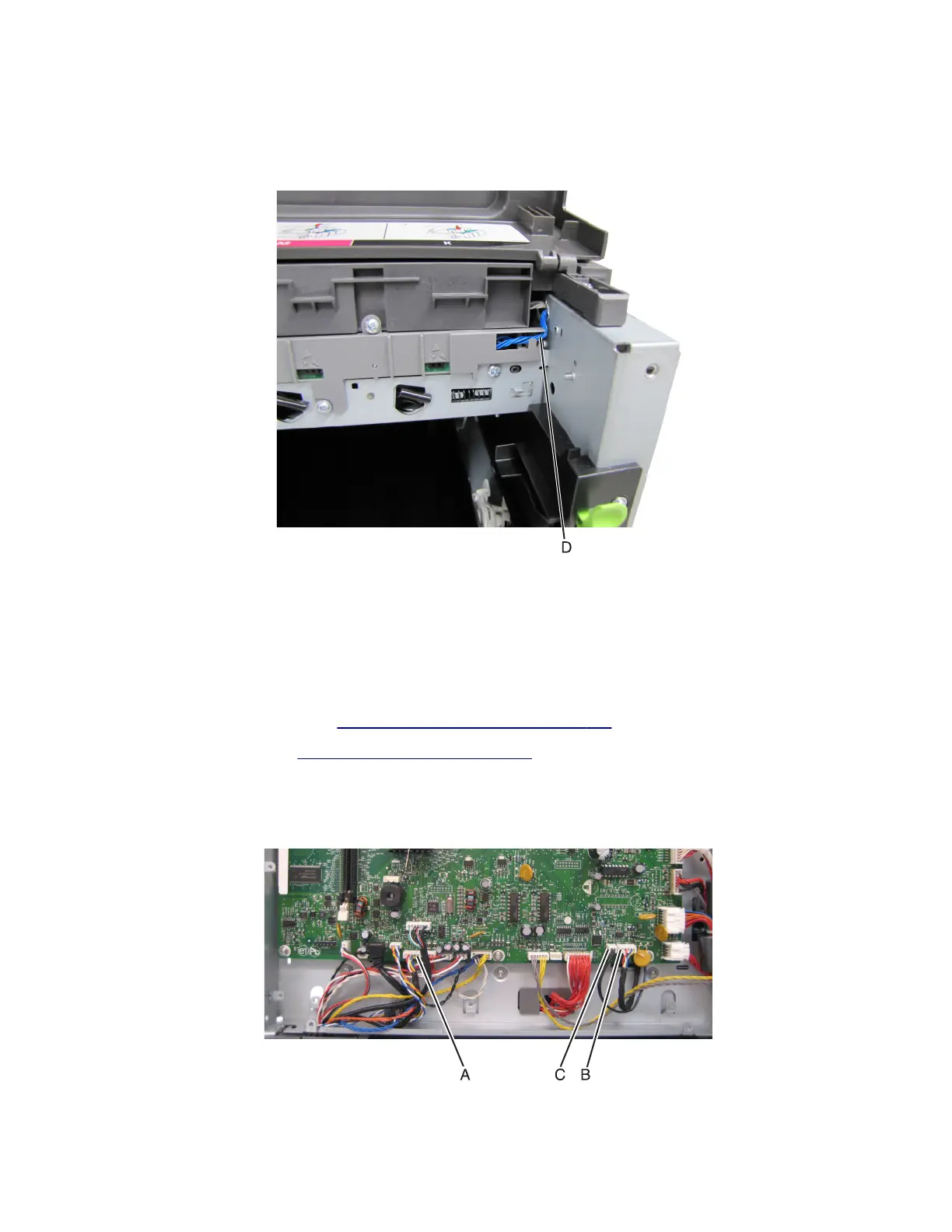

• Be sure the cable (D) runs through the retainer.
• The toner meter cycle card is a tight fit. Insert the bottom edge inside the frame, and then push down on the
top edge to clear the top cover.
Toner density sensor (TDS) (left or right sensor) removal
Note: The toner density sensor is also called the toner patch sensor (TPS).
Note: The toner density sensors are the same, but the left sensor has a thermistor attached which needs to be
removed when you install a new TDS on the left side. Reinstall the thermistor on the new TDS.
1 Remove the transfer module. See “Transfer module removal” on page 290.
2 Remove the rear cover. See “Rear cover removal” on page 307.
3 Disconnect the toner density sensor cable from JTDS1 connector (A) or JTDS2 connector (B) on the controller board.
If you are removing the left toner density sensor, also disconnect the thermistor from JFUSES1 connector (C) on
the controller board.
Note: Be sure to pay close attention to the routing of all cables for reinstallation.
7527
Repair information
260

Lexmark CX310 Specifications

General

Print Technology	Laser
Scan Technology	CIS
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Manual
Display	2.4-inch color LCD
Processor Speed	800 MHz
Standard Memory	256 MB
Fax Speed	33.6 Kbps
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet
Standard Paper Input	250 sheets
Scanner Type	Flatbed, ADF
Fax Resolution	300 x 300 dpi
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Copy Speed	Up to 22 cpm (black), Up to 18 cpm (color)
