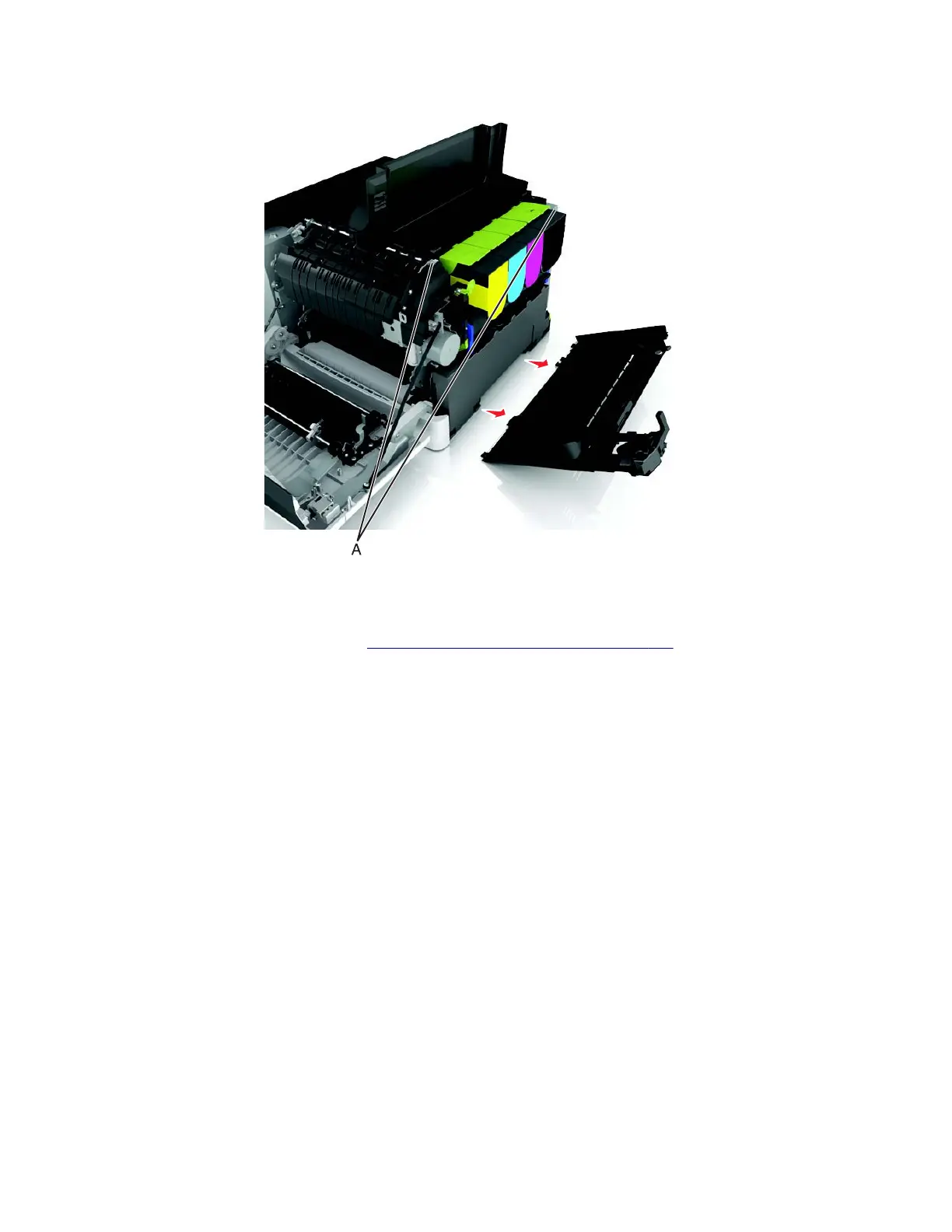

3 Release the latches (A), and lift off the cover.
Fuser drive motor assembly removal
1 Remove the right cover assembly. See “Right cover assembly removal” on page 256.
2 Disconnect the cable (A) from the fuser drive motor assembly.
Note: If you remove the toroid (B) from the cable, be sure to return the toroid to the cable when reinstalling.
7527
Repair information
257
