Installation notes:
a Reinstall the spring bracket.
b Connect the cable to the tray present sensor, and put the spring in place before installing the right lower frame.
Duplex sensor removal

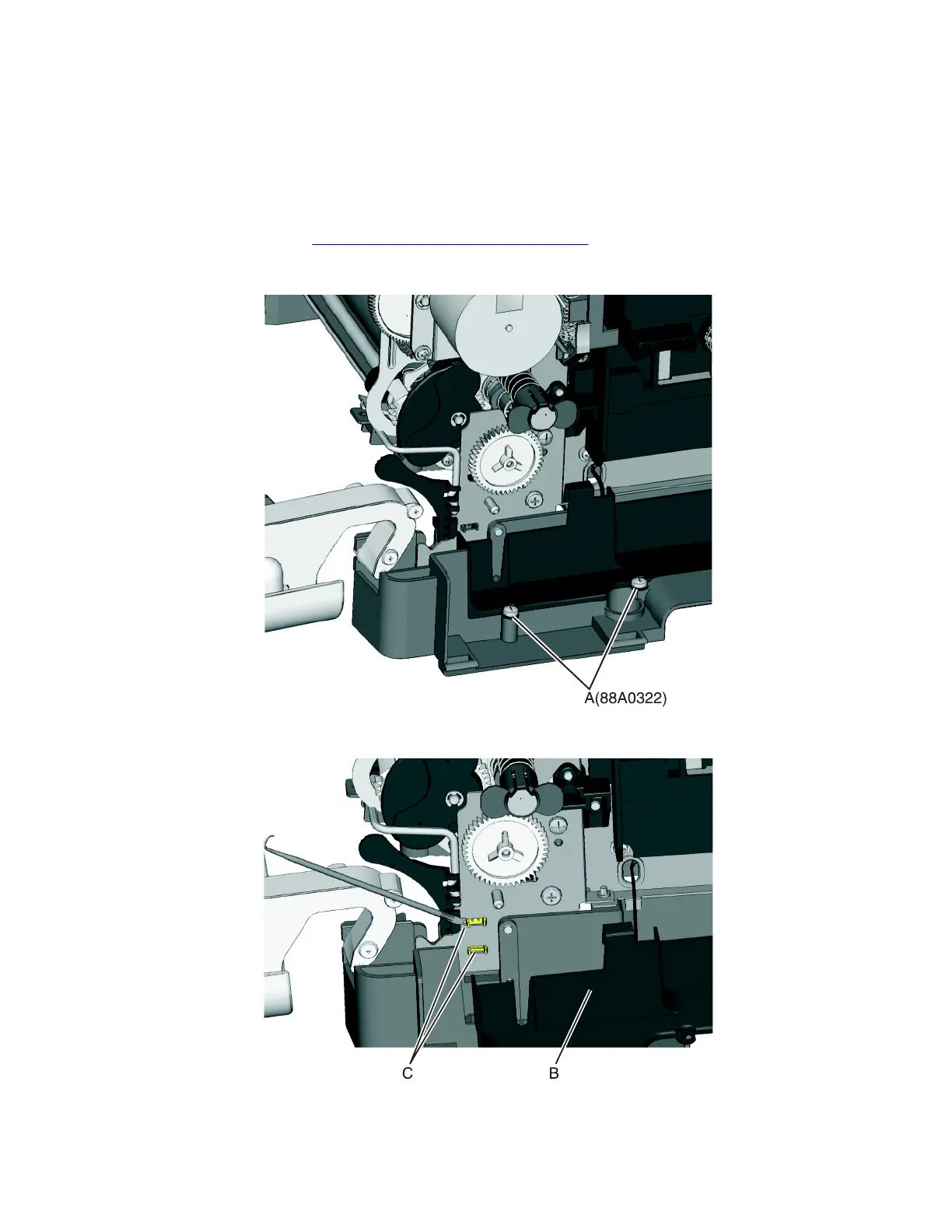

1 Remove the imaging unit. See “Imaging unit (IU) removal” on page 267.
2 Remove the two screws (A) from the cable cover.
3 Pull the corner of the cable cover (B) away from the right side to access the two sensor posts (C).
