Duplex reference edge removal

1 Open the front door.

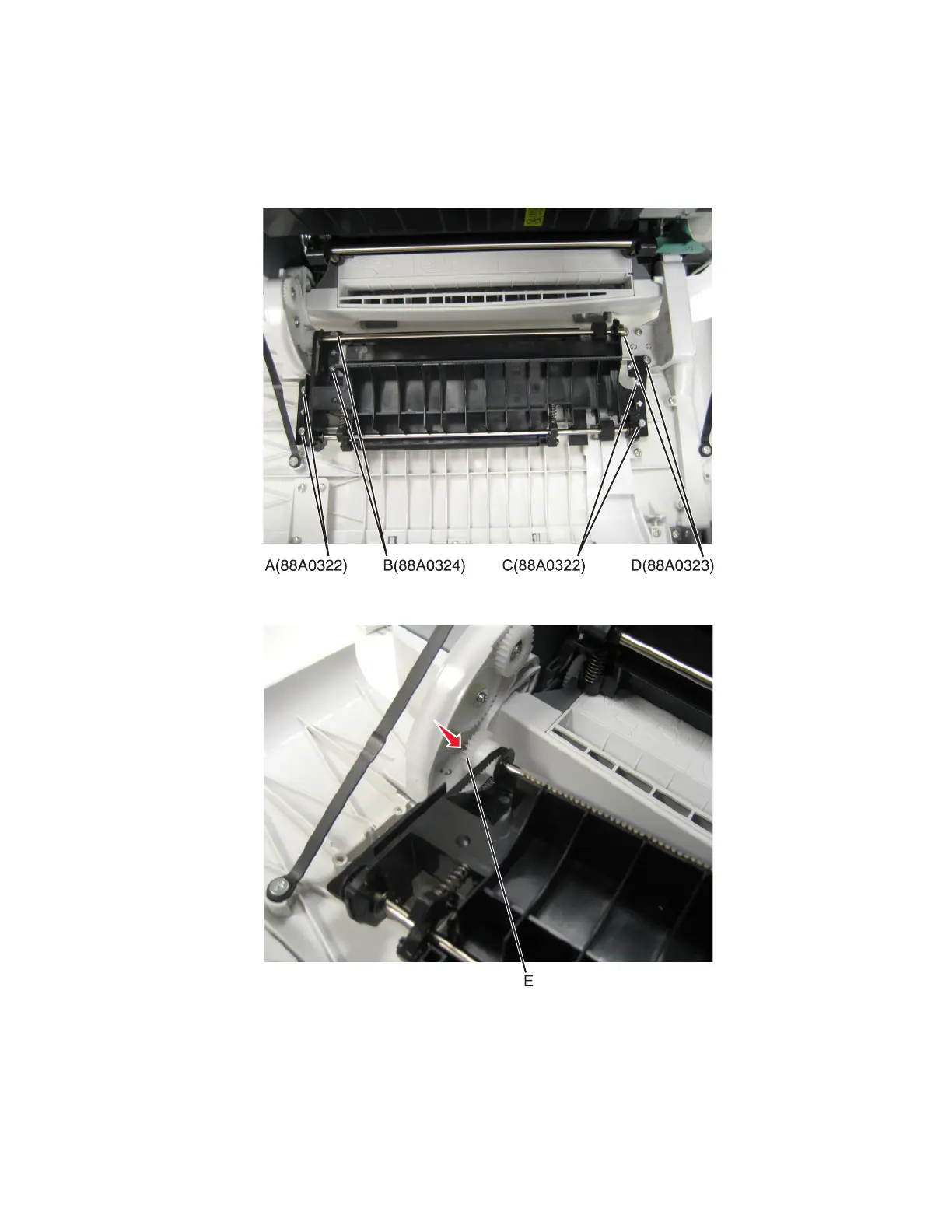

2 Remove the two screws (A), the two screws (B), the two screws (C), and the two screws (D) in the back of the duplex

aligner.

3 Lift the duplex aligner on the right side, and disengage the gears (E) on the left.

7527

Repair information

285
