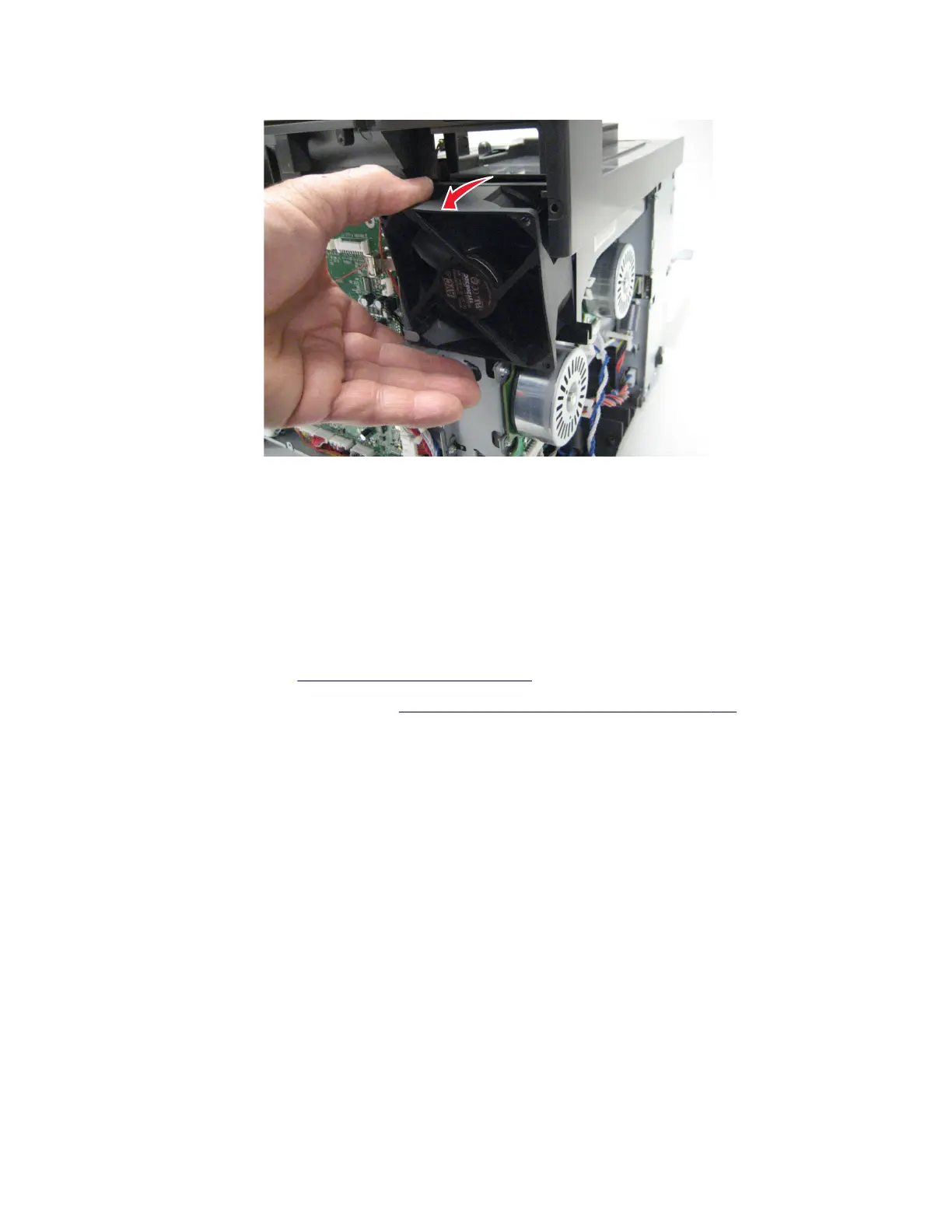

5 Unsnap the top of the system fan toward the rear.
6 Lift the system fan out, and remove.
Note: Be careful to not pinch the cables at the top rear corner of the fan when snapping it into place.
Top side removals
Top cover assembly removal
1 Remove the rear cover. See “Rear cover removal” on page 307.
2 Remove the flatbed scanner assembly. See “Flatbed scanner assembly removal” on page 333.
7527
Repair information
