Lexmark CX310 Service Manual

Horizontal bottom contact connector
This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding.
The horizontal bottom contact connector uses a flip locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator
using your finger. Do not use a fingernail or screwdriver to open the actuator. This could damage the ribbon cable.
Do not close the actuator from the ends of the actuator.
Removing a cable from the horizontal bottom contact connector

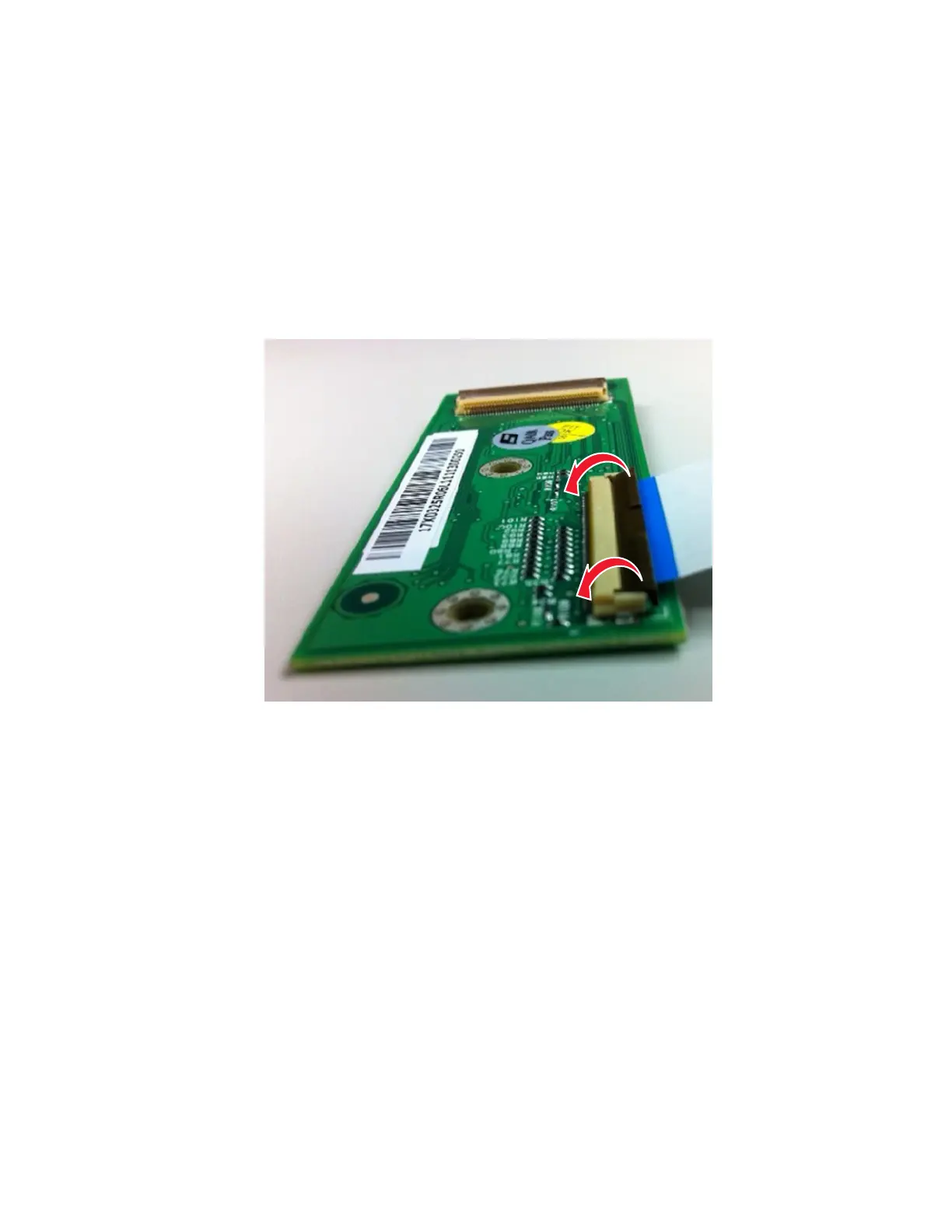

1 Place two fingers towards each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
7527
Repair information
236

Lexmark CX310 Specifications

General

Print Technology	Laser
Scan Technology	CIS
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Manual
Display	2.4-inch color LCD
Processor Speed	800 MHz
Standard Memory	256 MB
Fax Speed	33.6 Kbps
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet
Standard Paper Input	250 sheets
Scanner Type	Flatbed, ADF
Fax Resolution	300 x 300 dpi
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Copy Speed	Up to 22 cpm (black), Up to 18 cpm (color)
