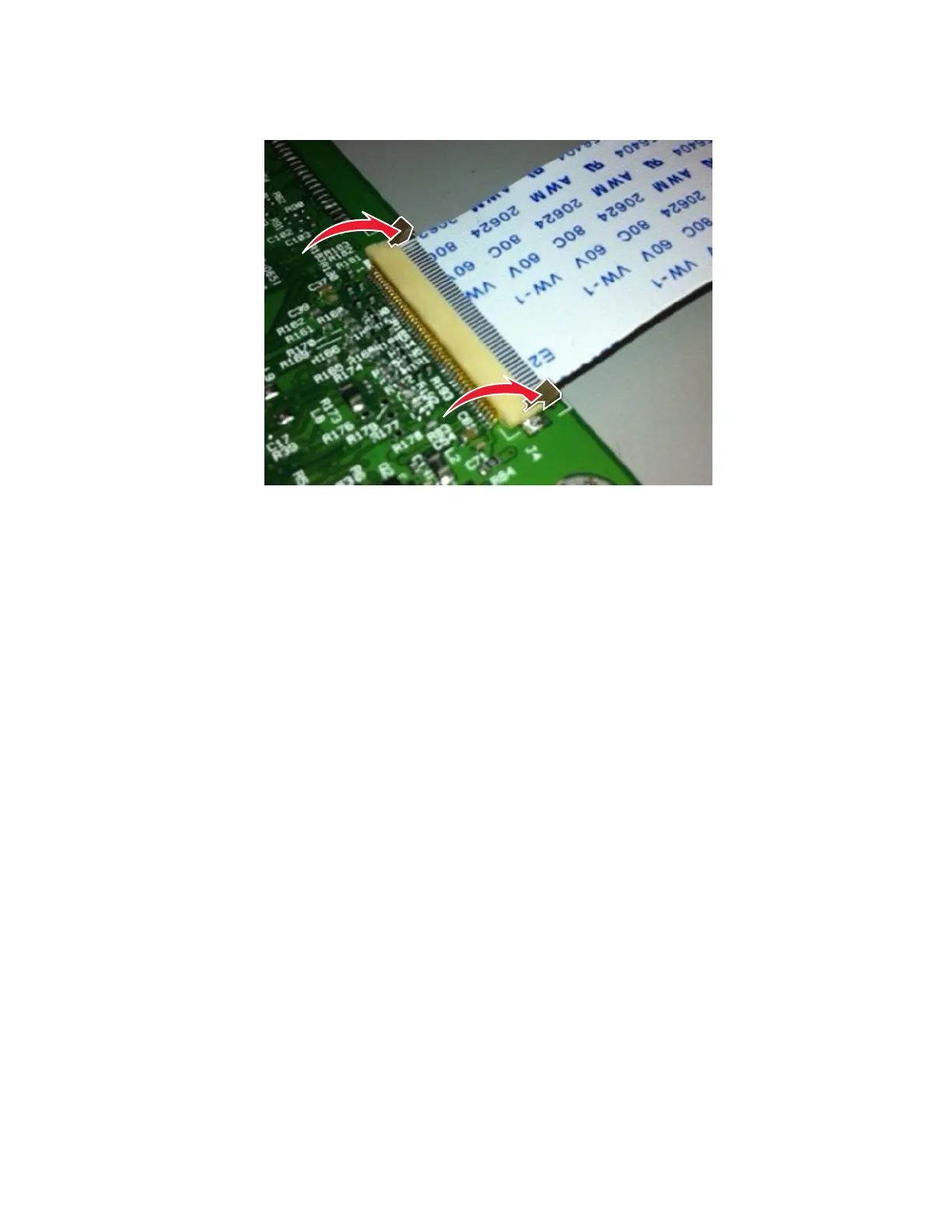

3 Rotate the locking actuator to the locked position. The cable should not move while this step is performed. If the

cable moves, open the actuator, reposition the cable, and then close the actuator to the down position.

7527

Repair information

235
