Fuser exit sensor removal

1 Remove the left cover assembly. See “Left cover assembly removal” on page 246.

2 Remove the fuser cables from the retainer to give needed slack.

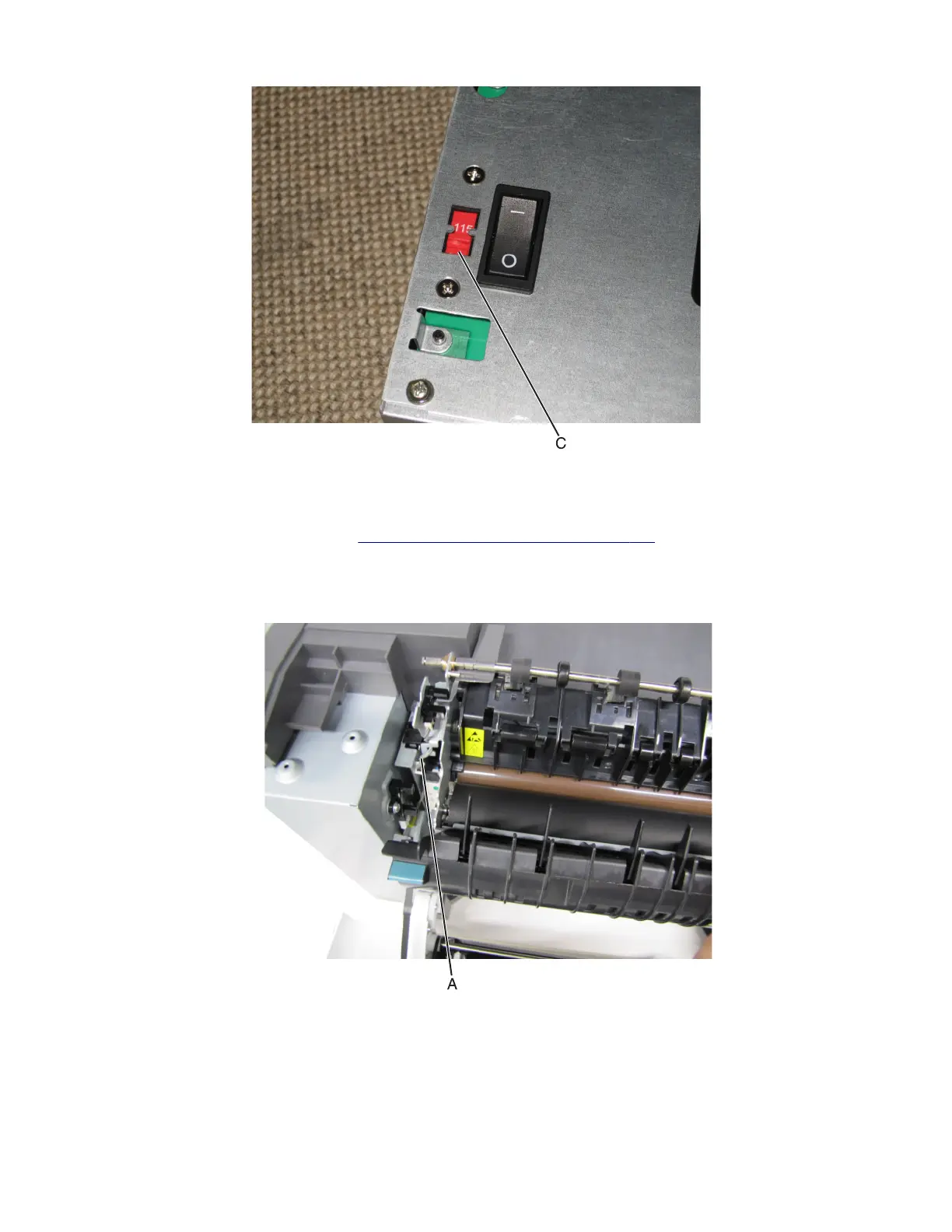

3 Disconnect the cable (A) from the bin‑full/narrow media sensor, and unroute the cable from its retainer.
