Lexmark CX310 - Pick Tire Removal

Pick tire removal
1 Remove the drawer tray assembly.

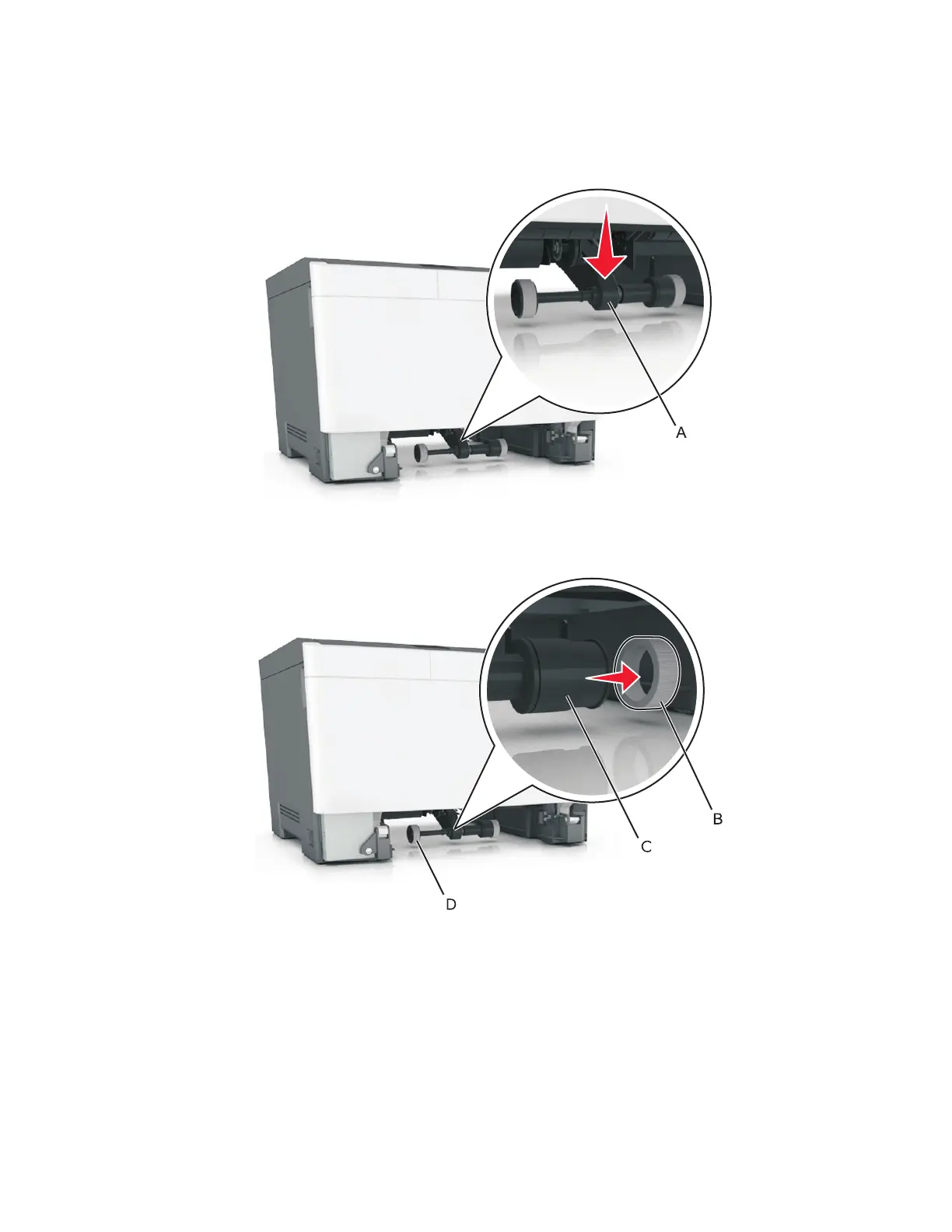

2 Lower the auto compensator mechanism (A).
3 Remove the rubber tires (B) from the pick roll assembly (C). Repeat for the other tire (D).
Installation note: Install the new rubber tire with its surface texture turning in the direction as shown.
