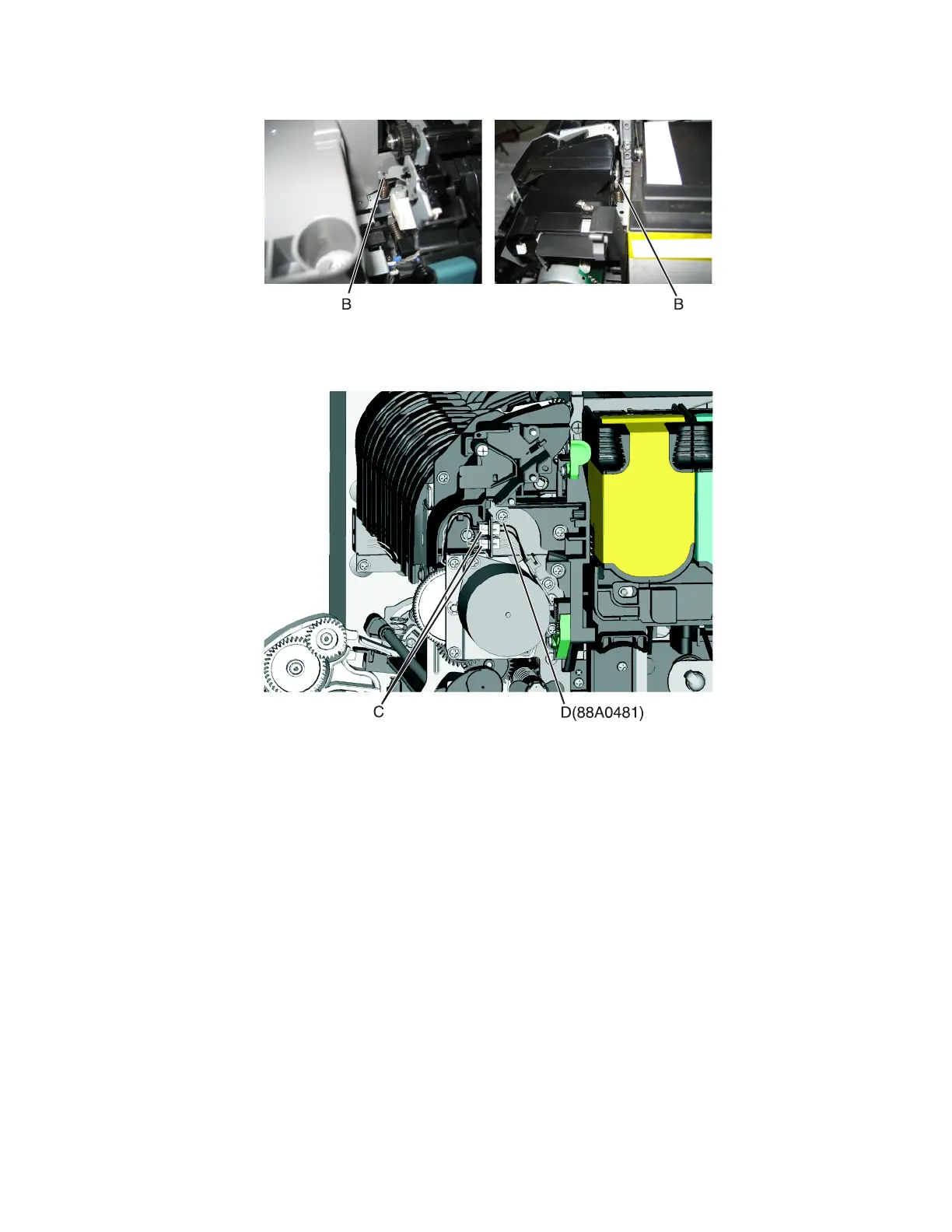

4 Unhook the springs (B) from both sides of the fuser.
5 Disconnect the thermistor cables (C).
6 Remove the screw and grounding washer (D) on the right side of the frame.
Note: Be careful to not lose the grounding washer.
7 Rotate the top of the fuser toward the front to gain access to screw (E).
8 Disconnect the cable (F), and remove the screw (E) from the fuser exit sensor.
