Lexmark CX310 - Page 301

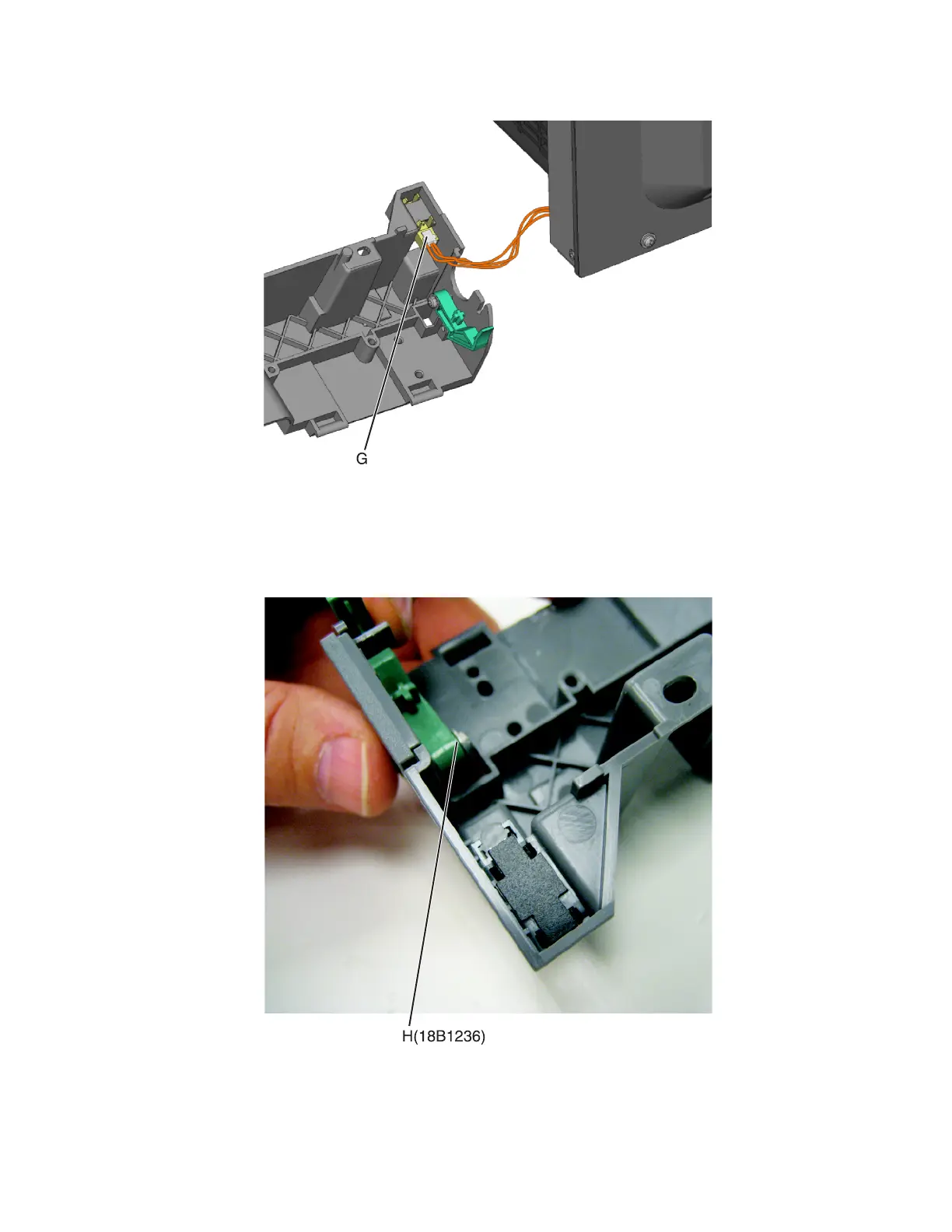

9 Disconnect the cable (G) from the tray present sensor.
10 Swing the rear of the lower frame away from the printer, and remove the right lower frame.
Note: There are parts in the right lower frame that are not included in the frame. The following instructions
show how to remove them.
11 Remove the screw (H), and remove the spring bracket.
7527
Repair information
301
