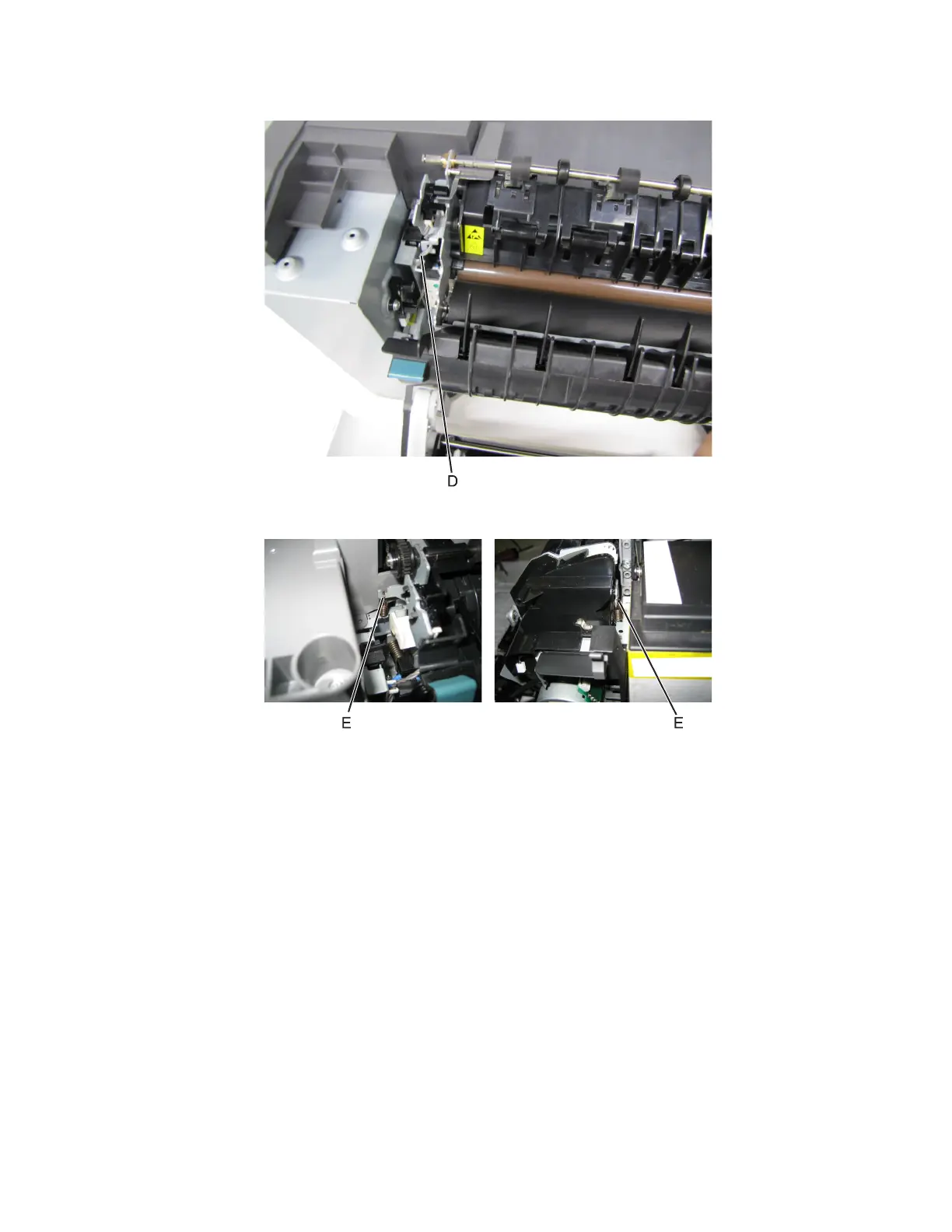

9 Disconnect the cable (D) from the narrow media sensor, and unroute the cable from its retainer.

10 Unhook the springs (E) from both sides of the fuser.

11 Disconnect the thermistor cables (F), and pull them over the retainer.

7527

Repair information

249
