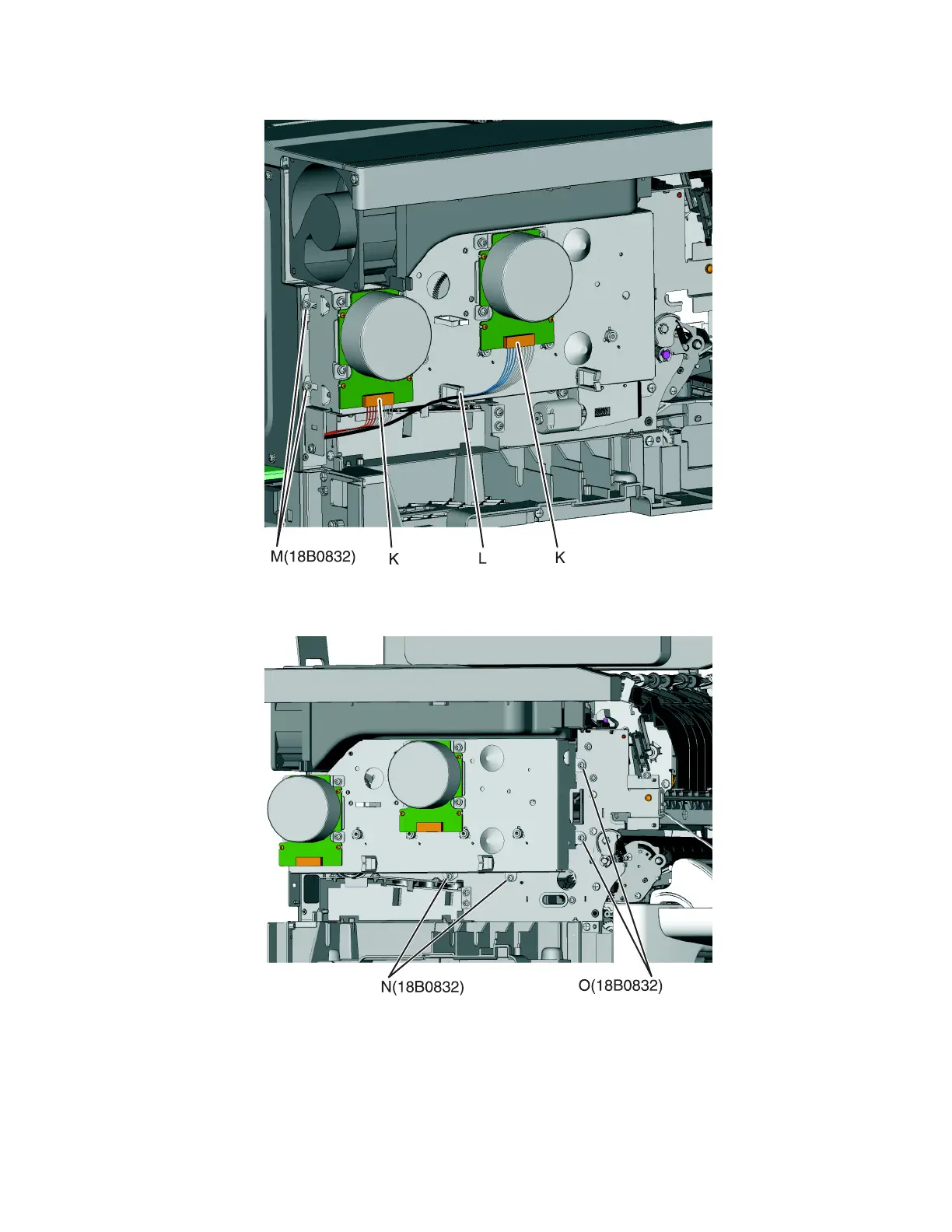

18 Remove the two screws (M) from the rear, and unroute all of the cables.

19 Remove the two screws (N) from below the EP drive assembly, and the two screws (O) from the right of the EP drive

assembly.

20 Lift the EP drive assembly, and remove.

7527

Repair information

252
