Installation notes:

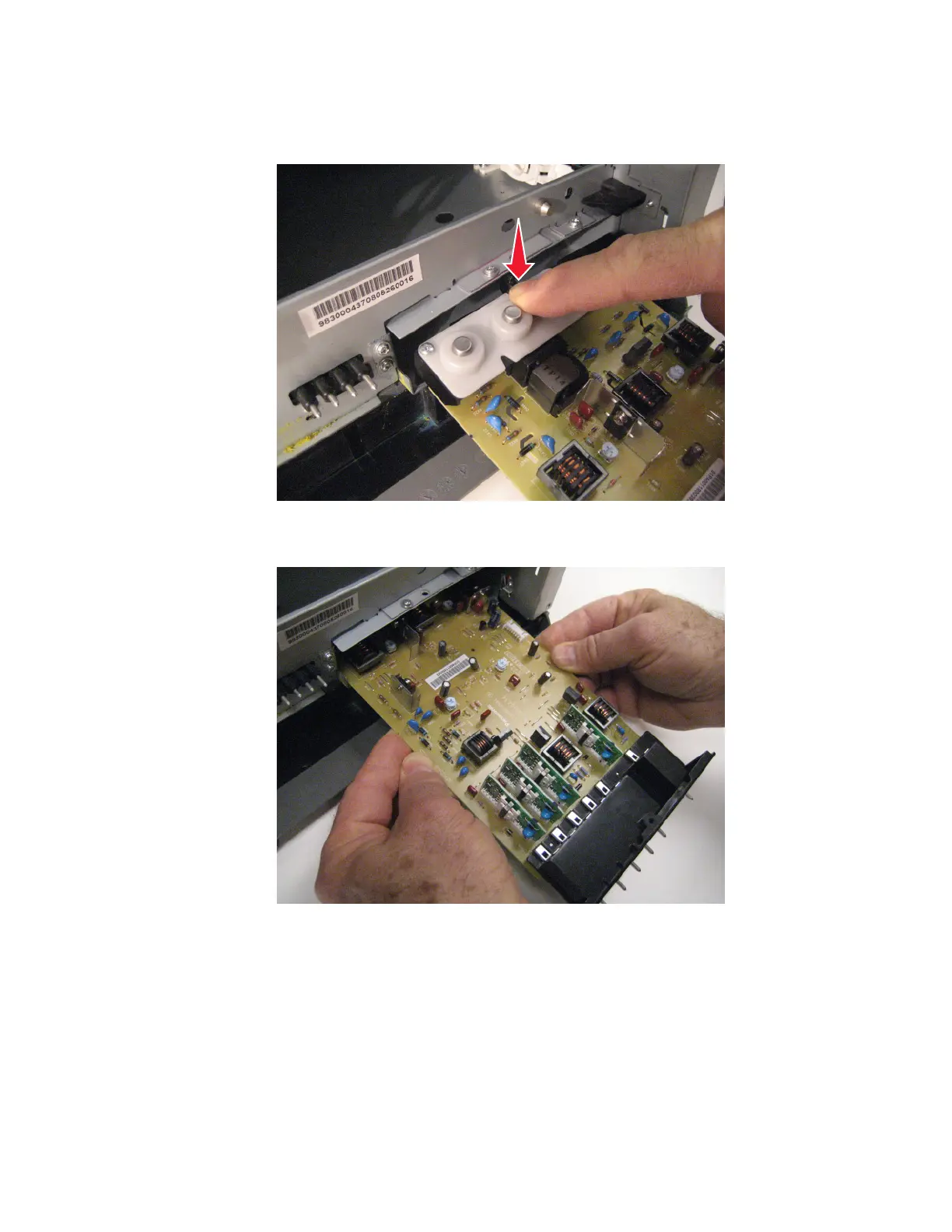

a To install the new HVPS board, insert the spring end of the HVPS board while compressing the spring, as shown

below.

b Slide the HVPS into position while holding its sides, as shown below. Do not allow the card to flex and touch the

cage.

7527
