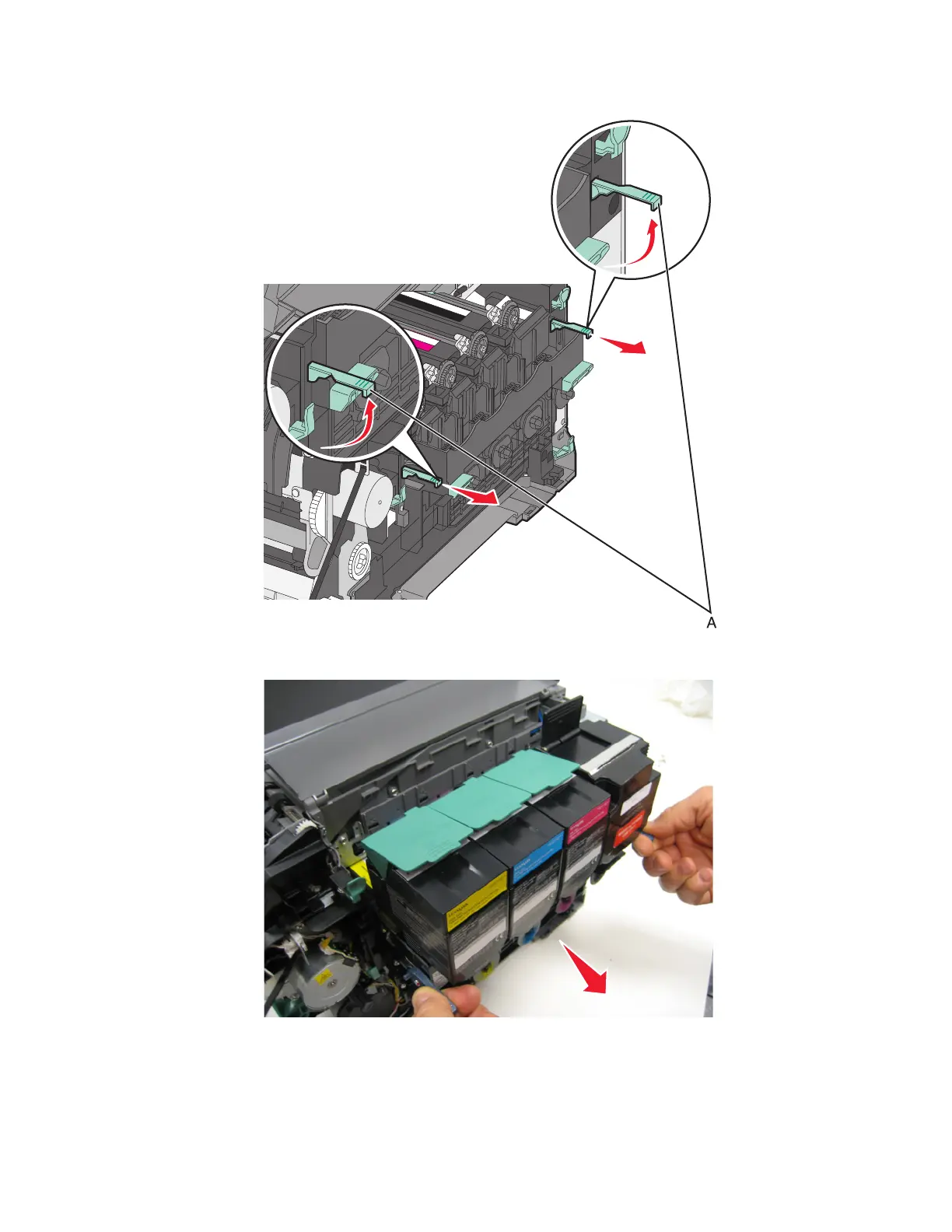

3 Lift the two latches (A) to unlock the imaging unit.

4 Pull the two latches until the imaging unit meets resistance.

5 Press and hold the handles (B) on the right and left sides, and pull the imaging unit straight out.

Note: Avoid touching the bottom of the imaging unit.

7527

Repair information

268
