Lexmark CX310 Service Manual

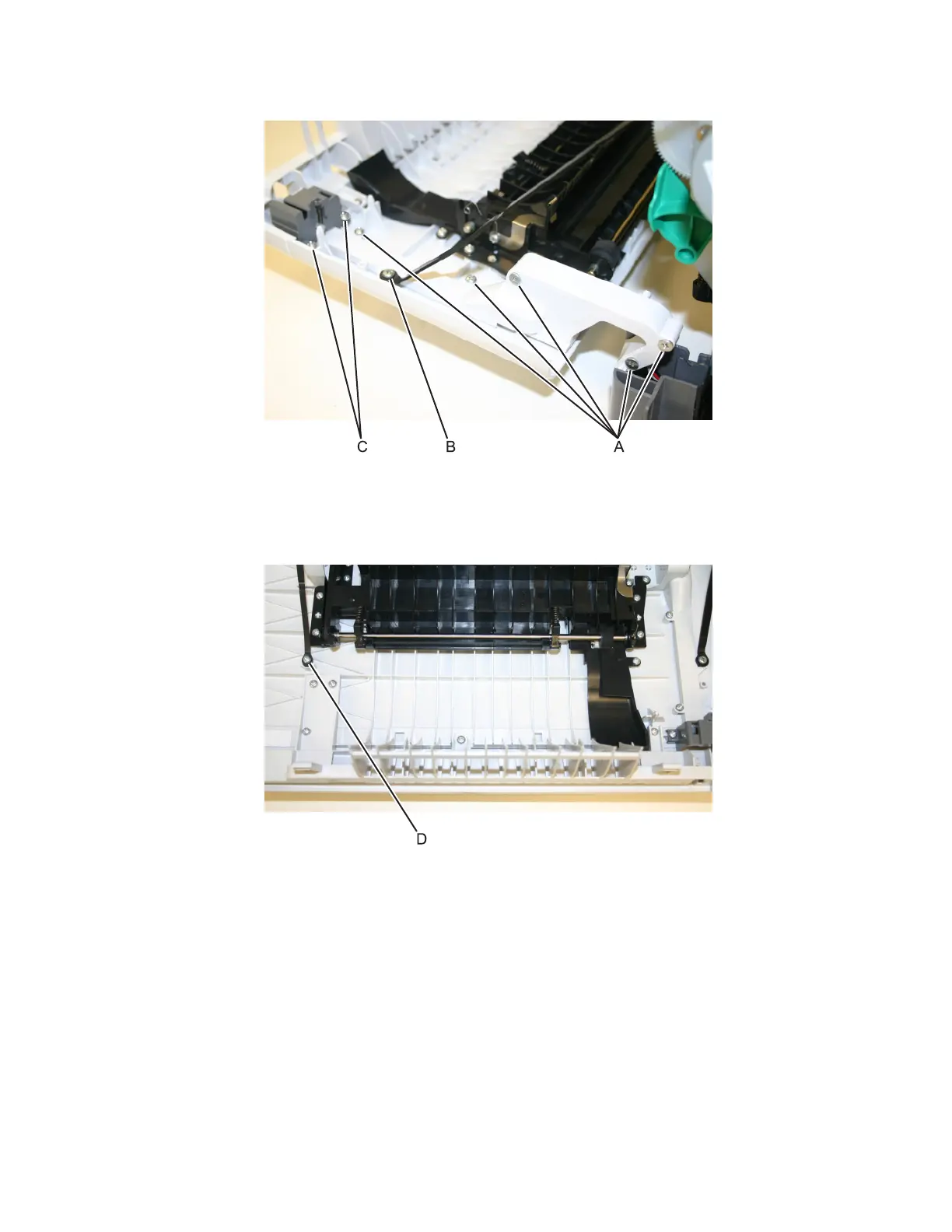

7 Remove the two screws (C) securing the interlock and cable.
8 Route the cable through the right hinge.
Note: Pay close attention to the routing of the interlock sensor cable through the right hinge and front door.
9 Remove the screw (D) securing the restraining strap to the left side of the front door.
10 Lower the front cover to align the flats on the hinges, and remove the front cover.
7527
Repair information
274

Lexmark CX310 Specifications

General

Print Technology	Laser
Scan Technology	CIS
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Manual
Display	2.4-inch color LCD
Processor Speed	800 MHz
Standard Memory	256 MB
Fax Speed	33.6 Kbps
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet
Standard Paper Input	250 sheets
Scanner Type	Flatbed, ADF
Fax Resolution	300 x 300 dpi
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Copy Speed	Up to 22 cpm (black), Up to 18 cpm (color)
