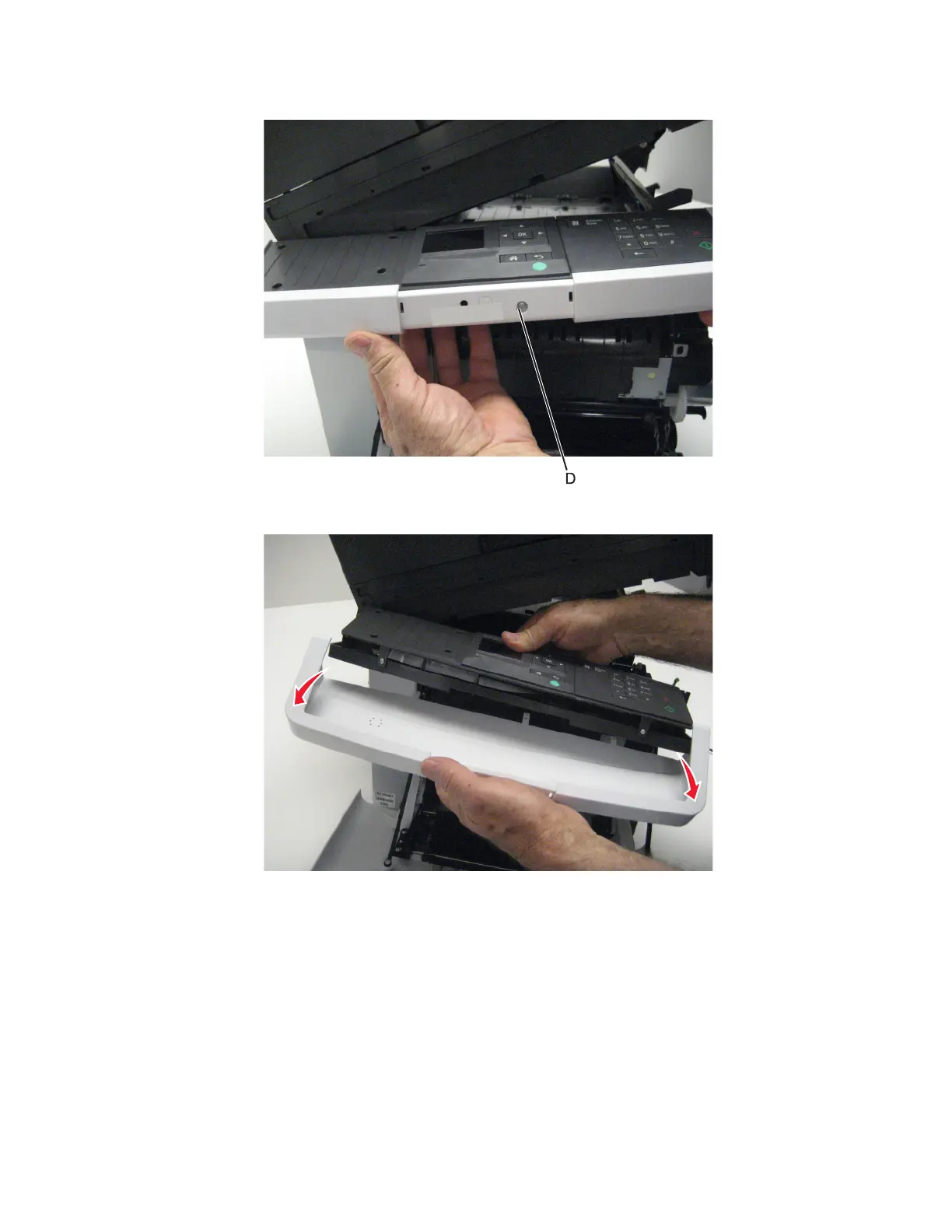

6 Remove the screw (D) from beneath the logo plate.

7 Remove the operator panel cover from the front of the printer.

7527

Repair information

279
