Note: Do not use tools when disconnecting the ribbon cables from the JPH1 and JLCD1 connectors on the

controller board to avoid damage.

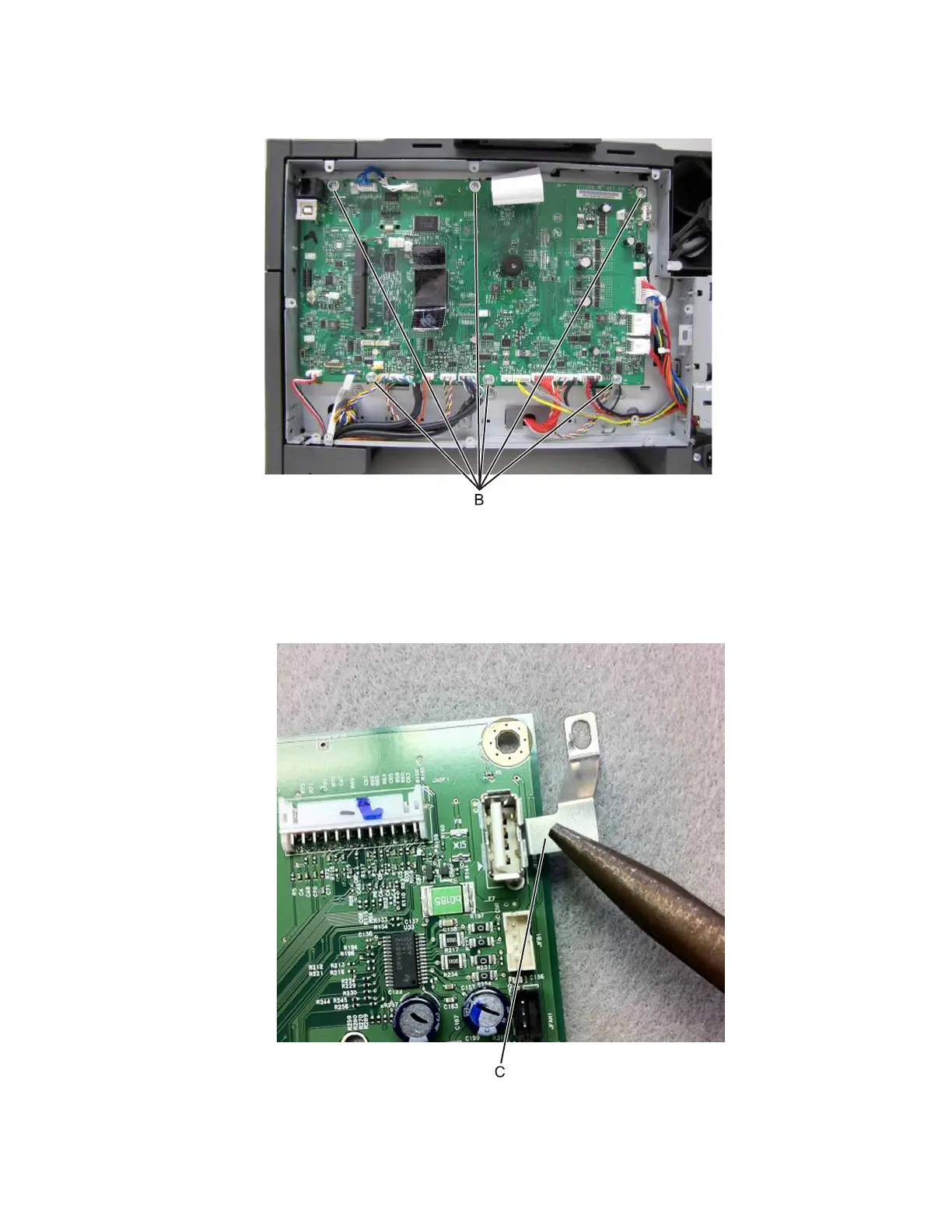

4 Remove the controller board.

5 Remove all USB grounding contacts (C) from the controller board.

Installation notes:

• Install the USB grounding contacts on the new controller board.

7527

Repair information

310
