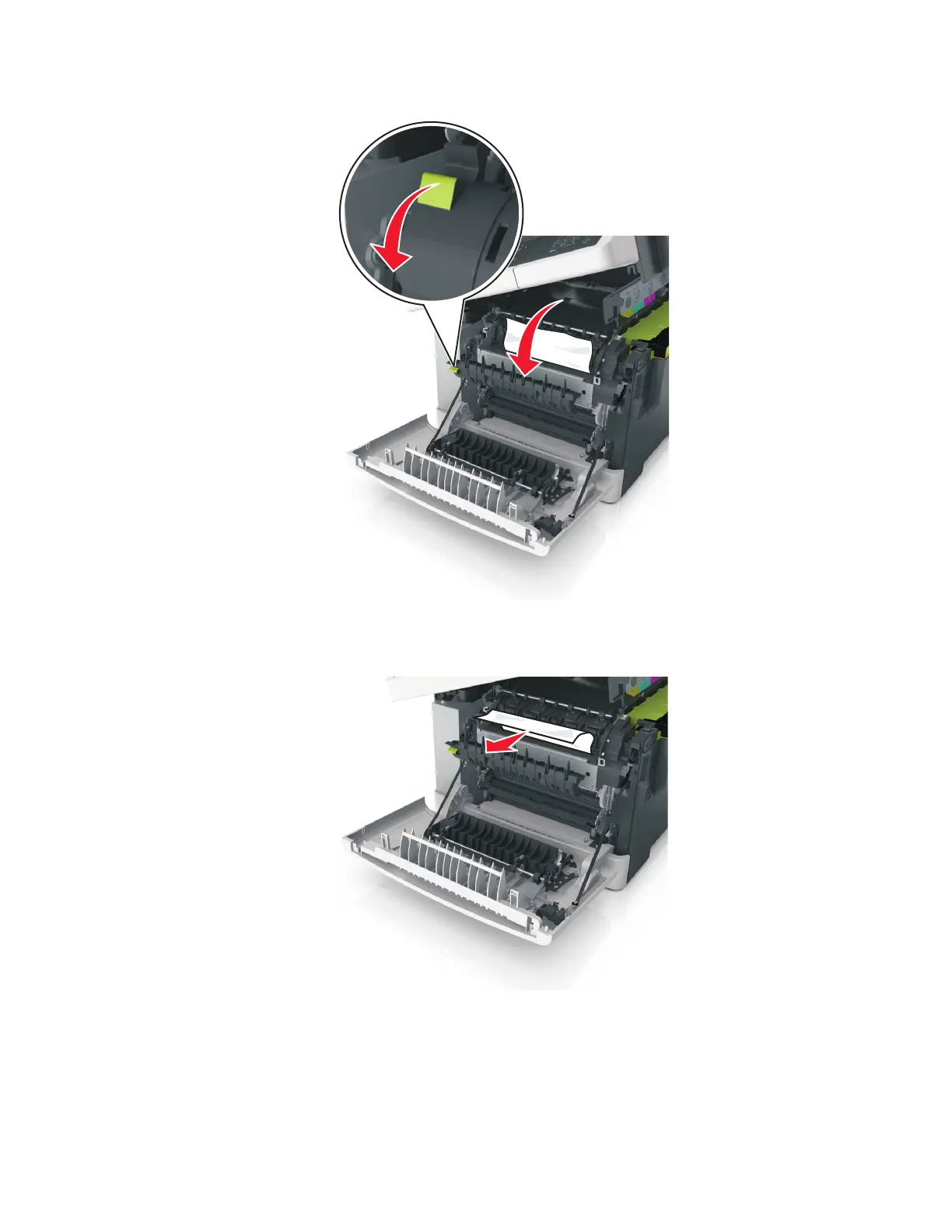

b Pull the green lever to open the fuser cover.

c If there is a jammed paper in the fuser, then hold down the fuser cover, and then remove the paper.

Note: Make sure all paper fragments are removed.

7527

Diagnostic information

62
