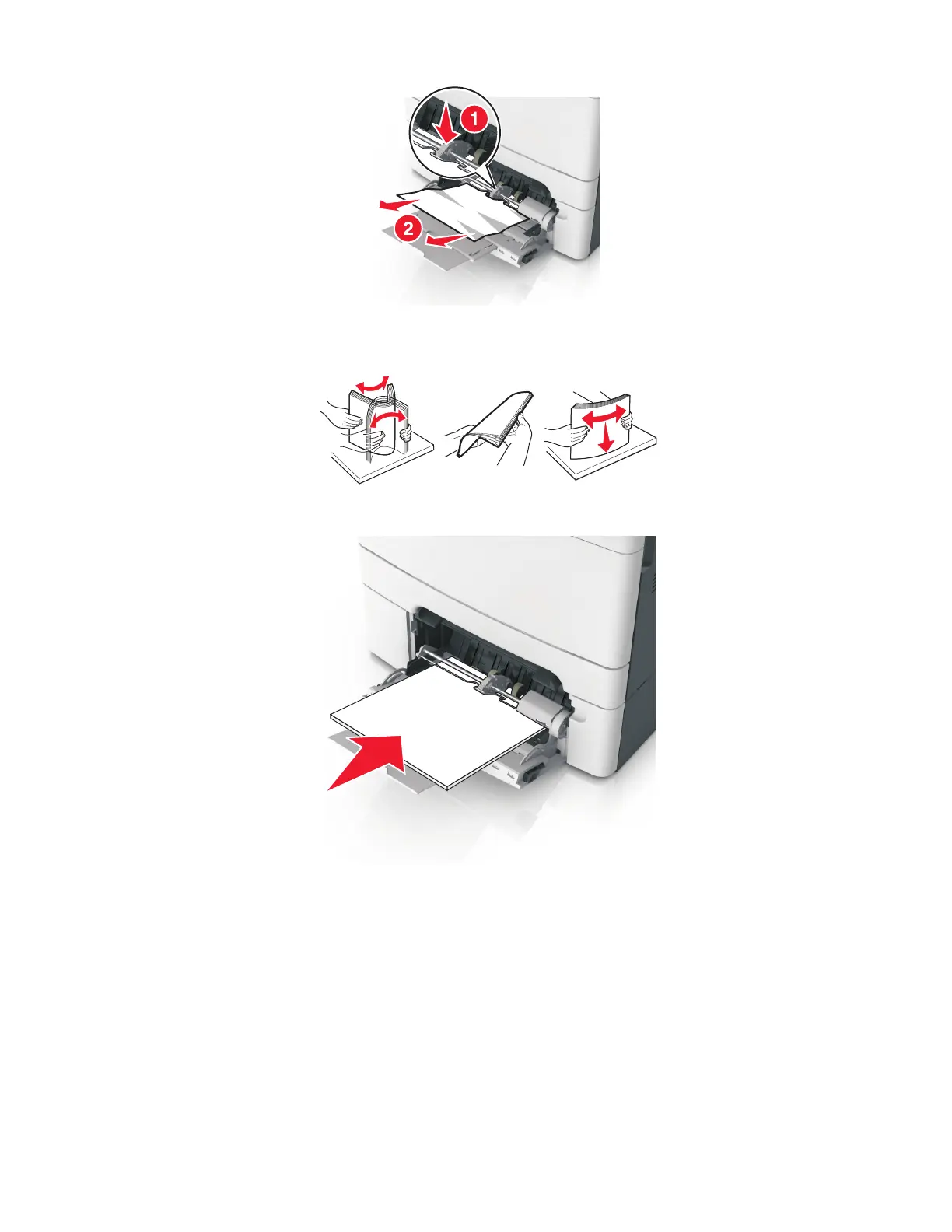

2 Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten

the edges on a level surface.

3 Reload paper into the multipurpose feeder.

7527

Diagnostic information

69
