Learning Advanced Features
246

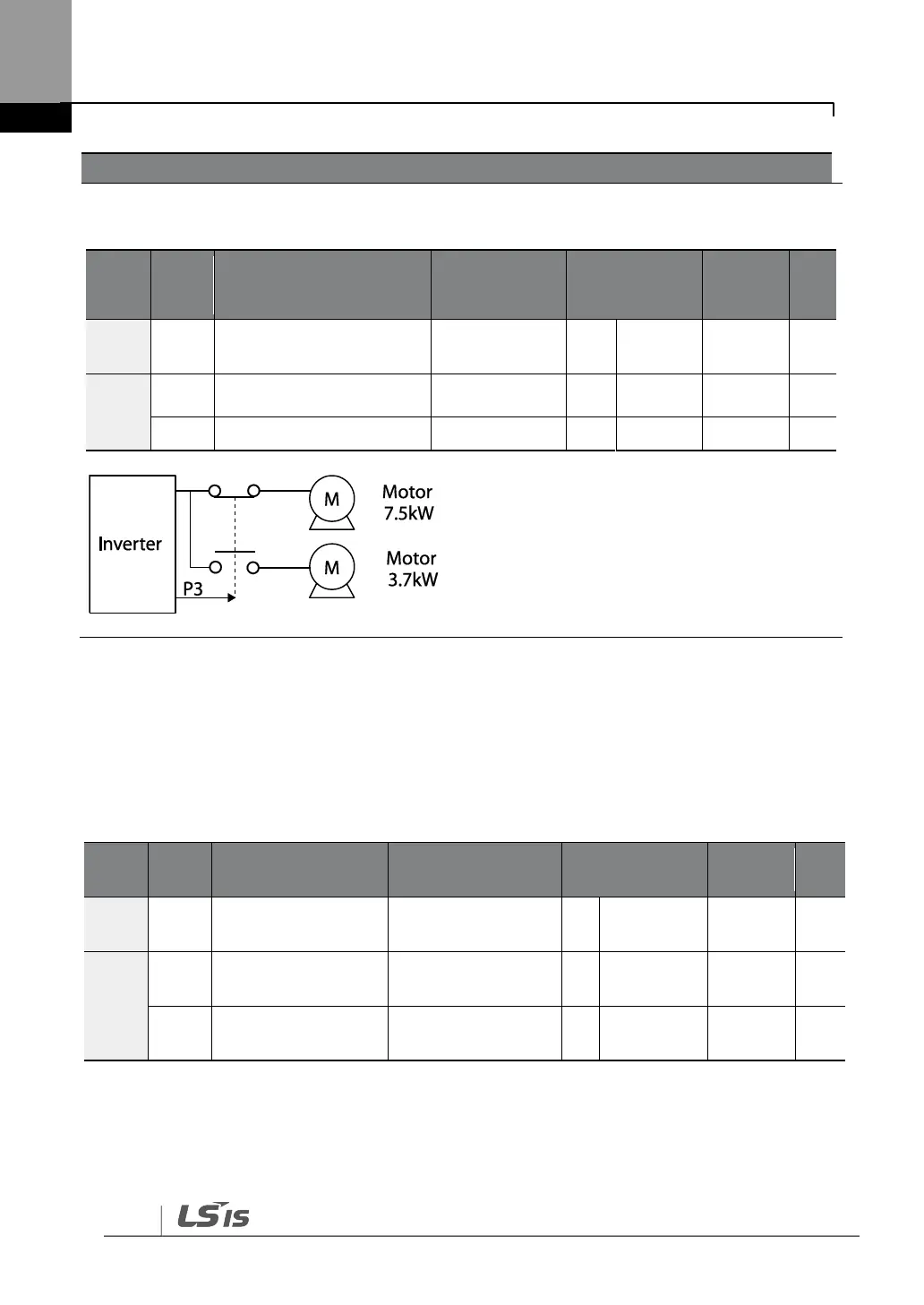

Example - 2nd Motor Operation
Use the 2nd motor operation when switching operation between a 7.5 kW motor and a
secondary 3.7 kW motor connected to terminal P3. Refer to the following settings.
Group
Code
Name
LCD Display
Parameter
Setting
Setting
Range
Unit
IN
67
Terminal P3 configuration
P3 Define
26
2nd
Motor
-
-
M2
06
Motor capacity
M2-Capacity
-
3.7 kW
-
-
08
Control mode
M2-Ctrl Mode
0
V/F
-
-
5.31 Supply Power Transition
A supply power transition is used to switch the power source for the motor connected to the
inverter from the inverter output power to the main supply power source (commercial power
source), or vice versa.
Group
Code
Name
LCD Display
Parameter
Setting
Setting
Range
Unit
IN
65–
71
Px terminal
configuration
Px Define(Px: P1–
P7)
18
Exchange
0-55
-
OUT
31
Multi-function relay
1 items
Relay1
17
Inverter
Line
0-41
-
33
Multi-function output
1 items
Q1 Define
18
Comm Line
0-41
-
