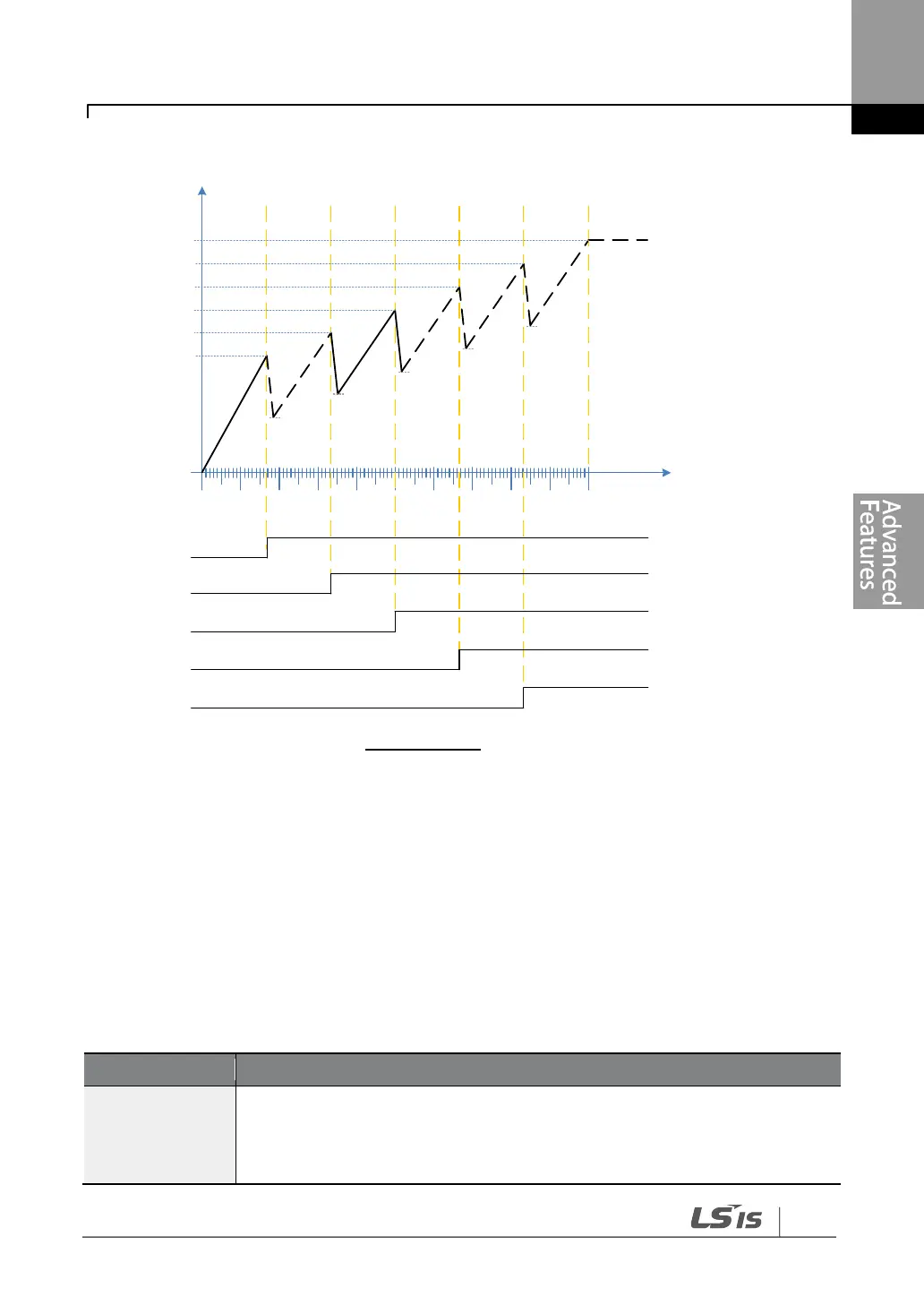

Learning Advanced Features
Out Freq
10%
20% 30% 40% 50% 60% 70% 80% 90%100%
16.6% 33.3% 49.9% 66.6% 83.3%
0%
area(6)
Off
On
Aux Motor 1
Max Freq
AP1-61
AP1-62
AP1-63
AP1-64
AP1-65
AP1-71
AP1-72
AP1-73
AP1-74
AP1-70
Regular ByPass
area(5)area(4)
area(3)
area(2)area(1)
Aux Motor 2
Aux Motor 3
Aux Motor 4
Aux Motor 5
5.44.7 Aux Motor PID Compensation
When the number of operating auxiliary motors increases, the flow rate of the pipe also
increases and the pressure of the pipe line decreases. Aux motor PID compensation
compensates for this pressure when the number of the auxiliary motor increases. By adding
the additional PID reference value (relevant to the auxiliary motor) to the current reference,
the loss of pressure can be compensated for.
Auxiliary PID Compensation Detailed Settings
AP1-80–84
Aux 1–5 Ref
Comp
Set the relevant PID reference compensation rate whenever the auxiliary
motor is turned on. The PID reference can be set over 100%, but when it
exceeds 100%, the maximum value of the PID reference is limited to
100%.
