DMX tester values, entered via the DMX command, are displayed with a red background.
To turn off the DMX tester, open the tools window or use the DMX command.

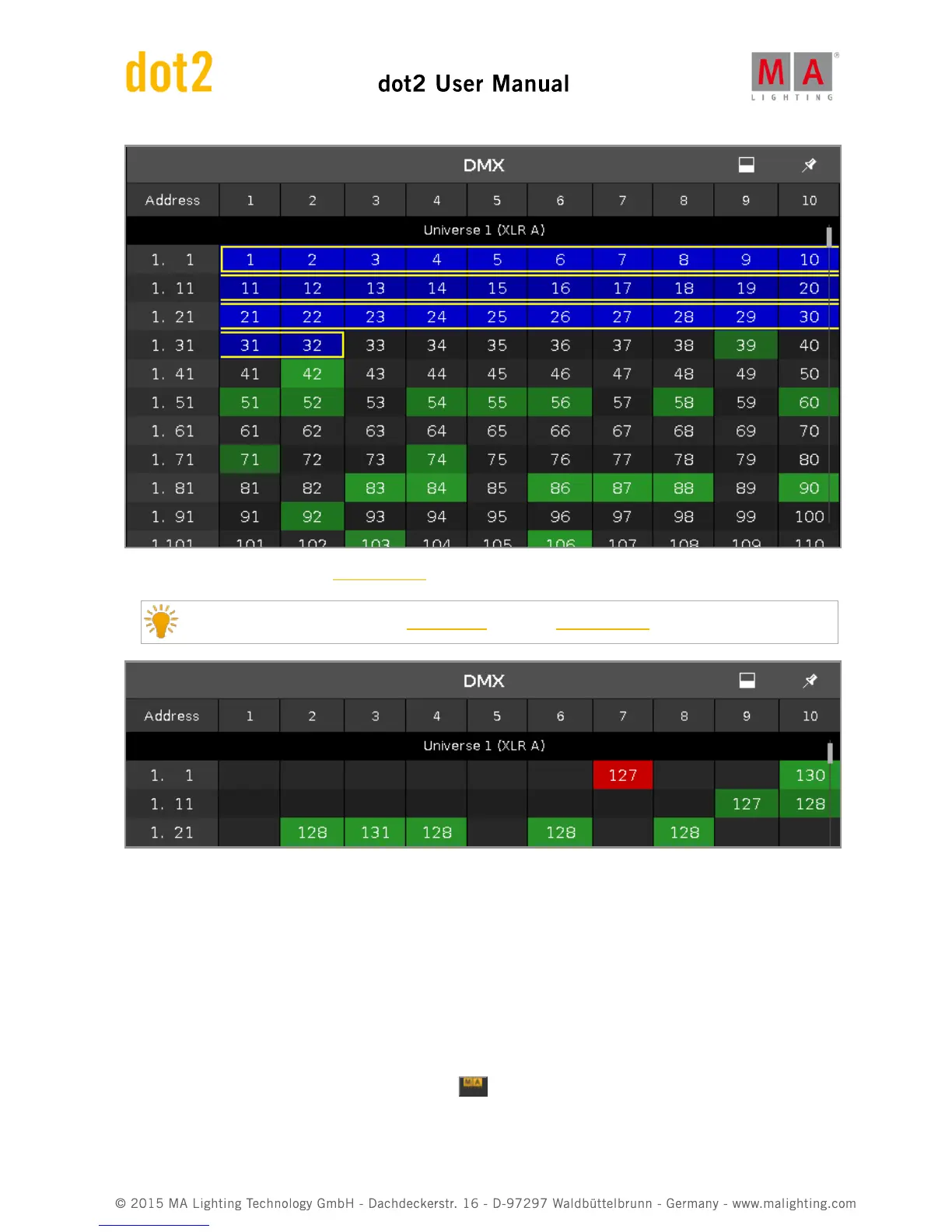

DMX Address
Below the title bar and leftmost on the screen are the DMX address columns.
The horizontal address column shows the DMX address for the respective line in the sheet.
The leftmost vertical address column shows at first the universe and then with which address the first column starts.
One DMX universe has 512 DMX addresses.
Before the DMX sheet of an universe starts is the universe displayed and which XLR plug-in is used.
To show the DMX addresses in the DMX view, press the key.
Encoder Bar Functions
