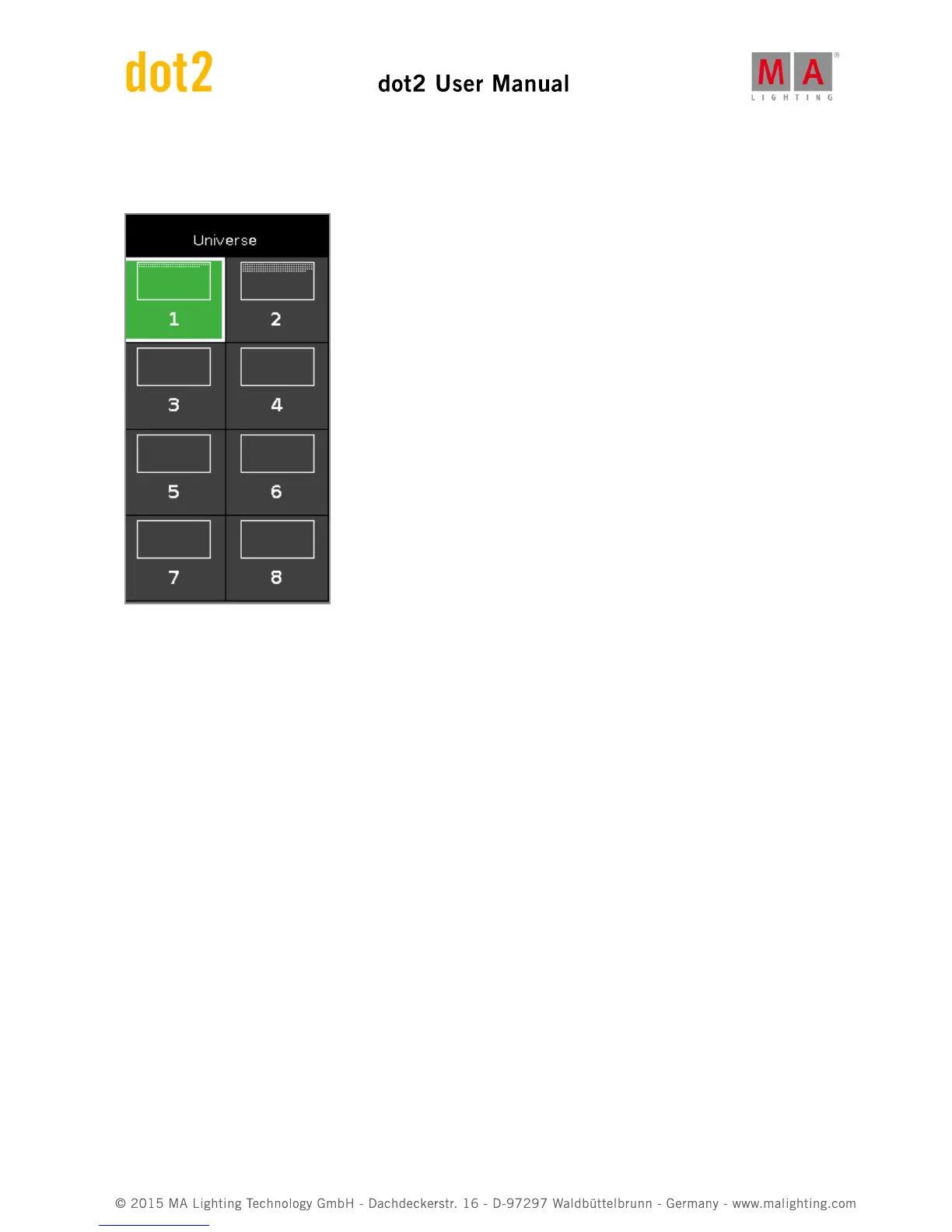

Universe Overview
The universe overview is located on the left side of this window.
The universe column includes eight universes.
A selected universe has a green background and a white frame around.
The white dots inside a universe displays which DMX addresses are assigned.
If there are no dots in a universe, the universe is free.
Universe Table
The universe table is right beside the universe overview.
The table has four columns Address, ID, Fixture Type and Attribute.
Address: Displays the DMX addresses.
ID: Displays the fixture IDs.
Fixture Type: Displays the fixture types.
Attribute: Displays the fixture attributes.
If a fixture needs more than one DMX address, the first column is in a white font and all following are in a gray font.
A selected fixtures which is fitting in the selected DMX address has a green background.
