To edit the short name, press and hold the cell. It opens the Edit Short Name Window.
4. Manufacturer
Displays the manufacturer of the fixture type.
To edit the manufacturer, press and hold the cell. It opens the Edit Manufacturer Window.
5. ShortManu
Displays the abbreviation of the manufacturer of the fixture type.
To edit the short name of the manufacturer, press and hold the cell. It opens the Edit ShortManu Window.
6. DMX Footprint
Displays how many DMX channels the fixture type needs.
7. Instances
Displays how many different elements with single controls the fixture type has.
8. Mode
Displays the mode of the fixture type.
To edit the mode, press and hold the cell. It opens the Edit Mode Window.
9. Used
Displays how often the fixture type is imported in the Patch and Fixture Schedule.

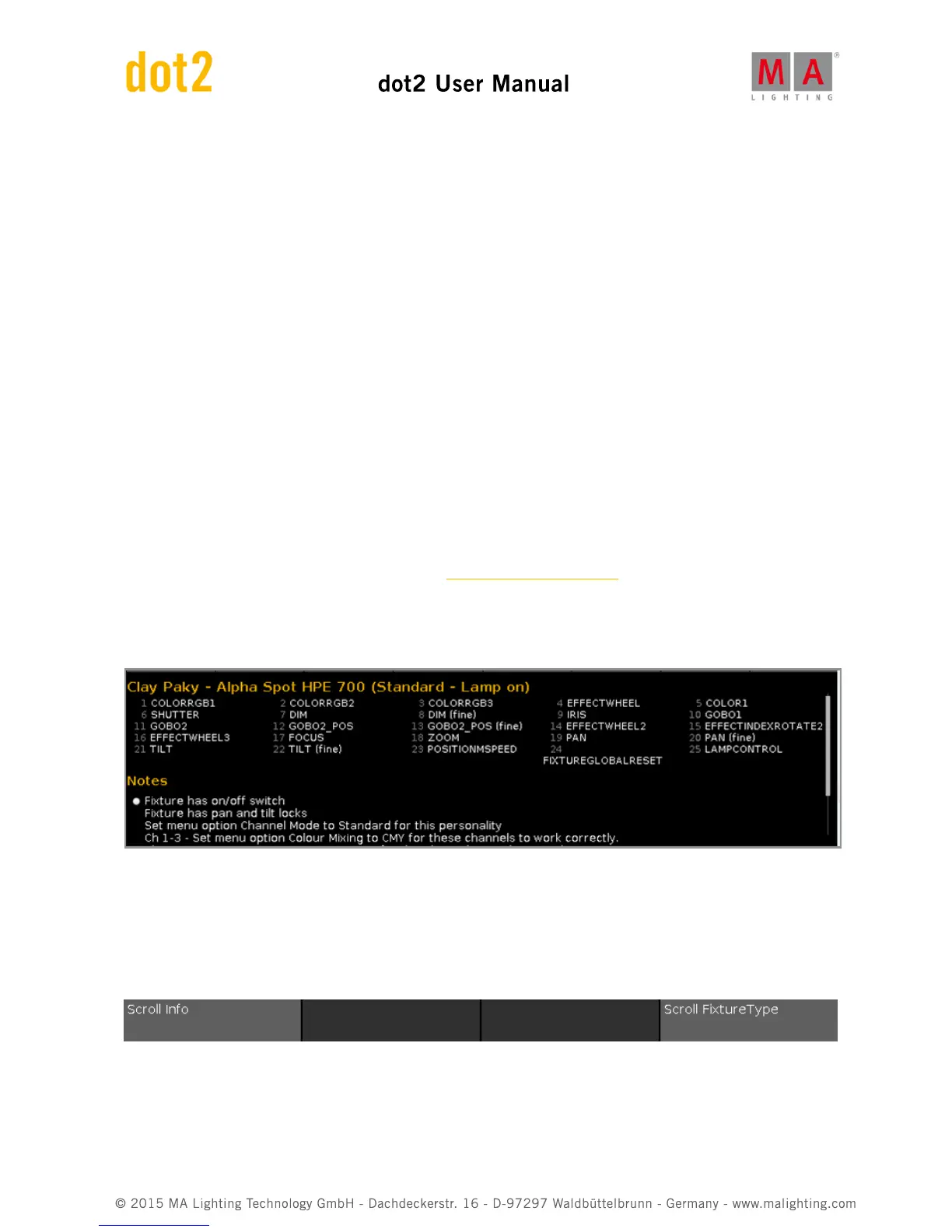

Information Area
Below the symbol or sheet view is the information area.
It displays at first, manufacturer, device name and mode in brackets, of the selected fixture type.
Below the name are all DMX channels along with their attributes.
If the fixture type has virtual channels it is displayed below the real channels.
If notes to the selected fixture type are available, they are also displayed in that area, together with the revisions.
Encoder Bar Functions
Scroll Info:
To scroll in the information area up or down, turn the encoder left or right.
Scroll FixtureType:
