214683 76 Revision A

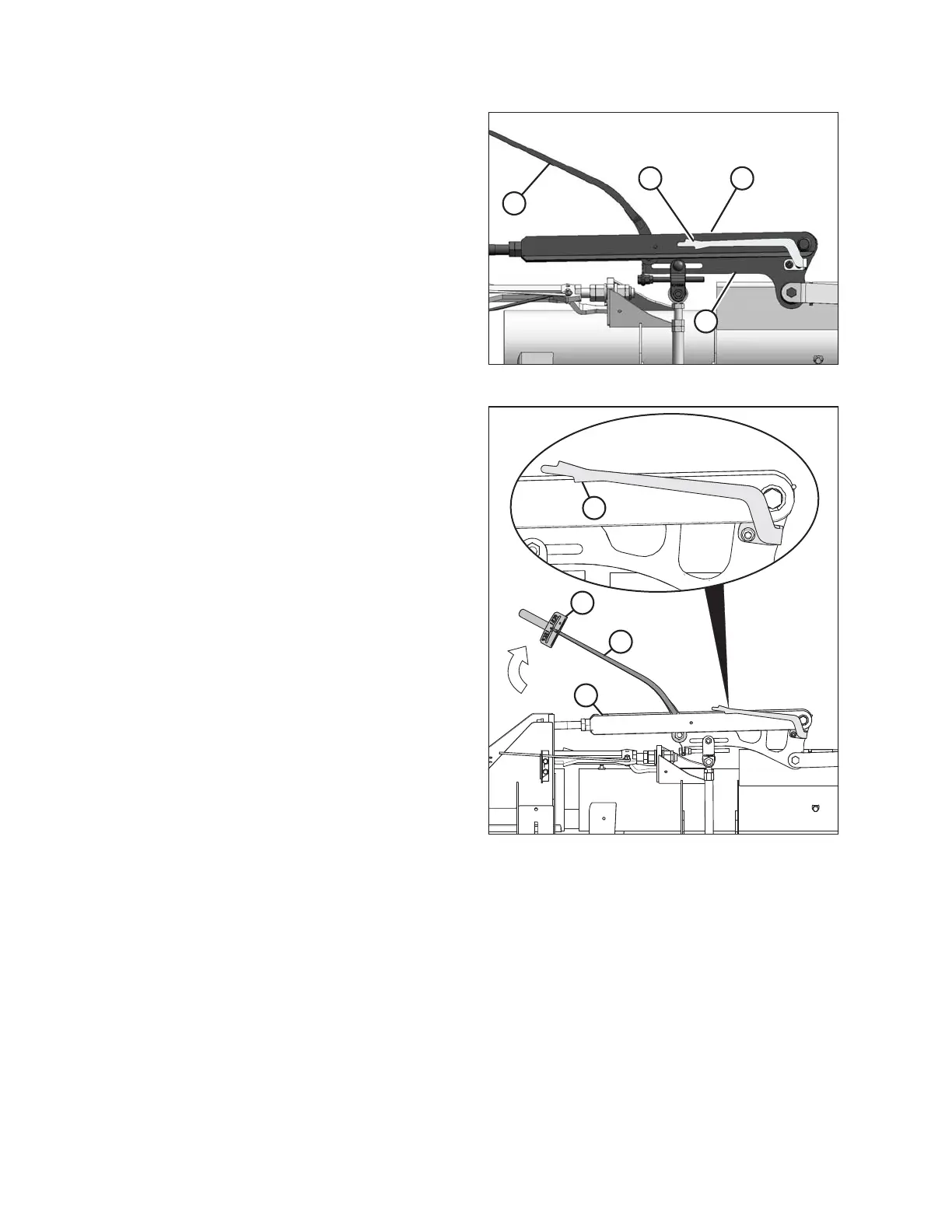

Figure 3.61: Balance Linkage
11. Check that pointer (D) is properly positioned as follows:
a. Use wrench (A) to move bell crank (B) so that lower
edge of bell crank is parallel to top-link (C).
b. Check that pointer (D) is lined up with the
top-link (C). Bend pointer if necessary.
Figure 3.62: Balance Linkage
12. Move wing upward with torque wrench (A) until the
pointer’s lower alignment tab (C) lines up with the upper
edge of the top-link (B). Observe the indicator
reading (D) on wrench and record it.
OPERATION
