214683 77 Revision A

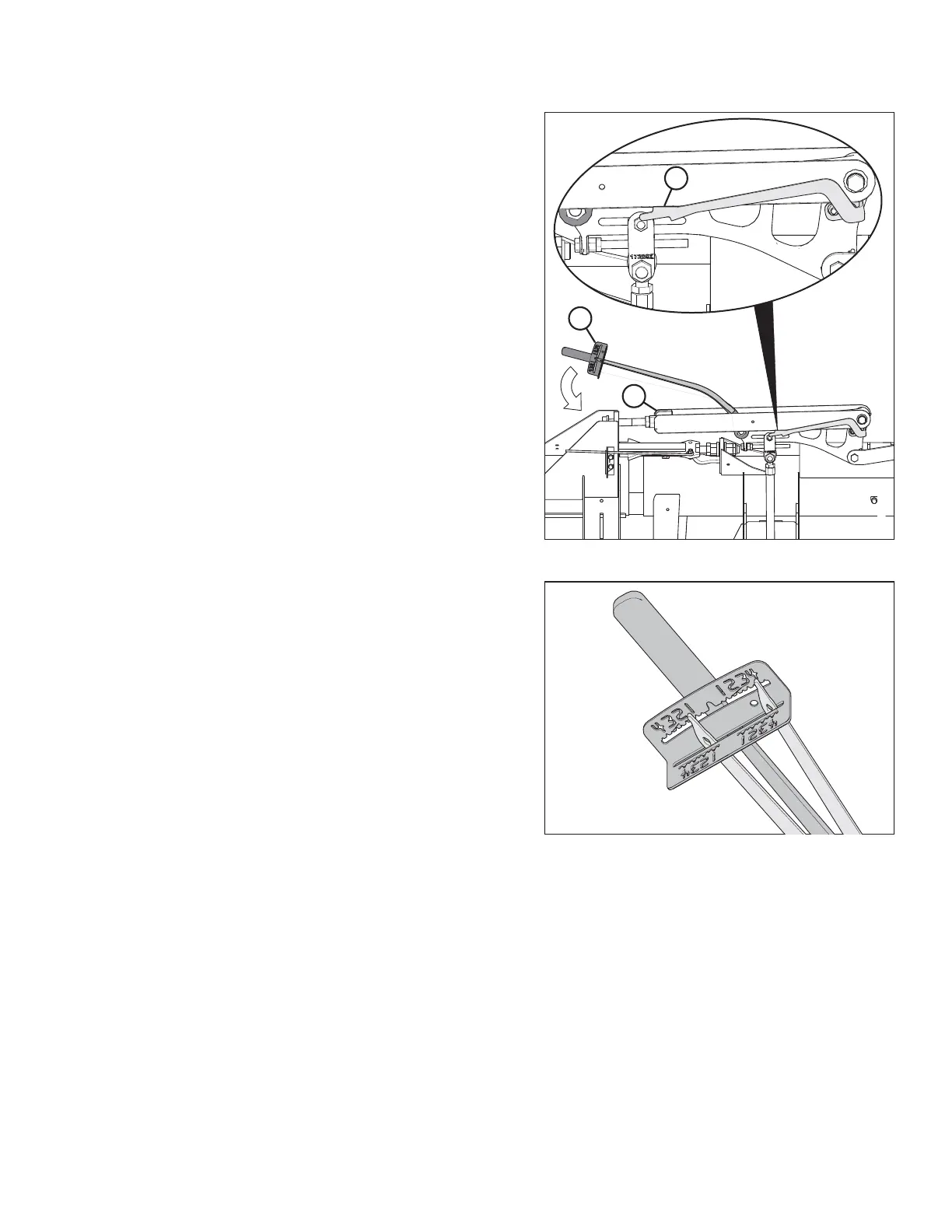

Figure 3.63: Balance Linkage
13. Move wing downward with torque wrench (A) until the
pointer’s upper alignment tab (C) lines up with the lower
edge of the top-link (B). Observe indicator reading (A)
on the wrench and record it.
14. Compare the readings taken in Steps 12, page 76 and
13, page 77.
• If the difference between the readings is 0.5 or less,
the wing is balanced and no further adjustment is
required. To reinstall the linkage cover, refer to Steps
15, page 78 and 16, page 78.
• If the difference between the readings is more than
0.5, the wing is not balanced. Refer to Adjusting
Wing Balance, page 79.
Figure 3.64: Wrench Indicator
• If the indicator range is as shown, the wing is
too light.
OPERATION
