MacDon FlexDraper FD140 - Page 126

214683 102 Revision A
1024552
A
B
C

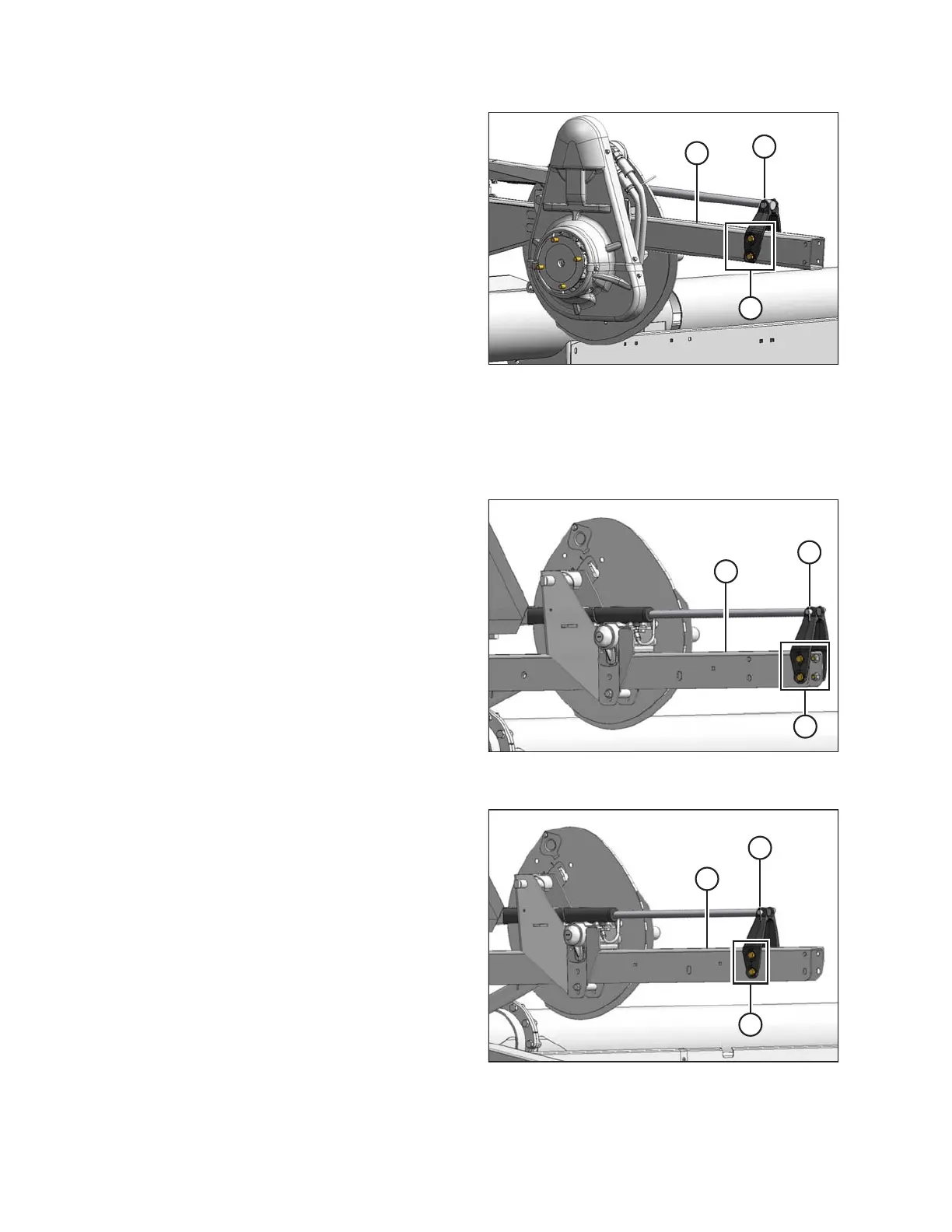

Figure 3.109: Center Arm – Aft Position
4. Push/pull reel until bracket (B) lines up with the aft set
of holes in reel arm (C).
5. Reinstall four bolts (A) to secure bracket (B) to reel arm
at new position.
Reposition the right reel arm cylinder as follows:
NOTE:
Some reel components are not shown in illustrations for improved clarity.
1024553
A
B
C
Figure 3.110: Right Reel Arm Cylinder in
Forward Position
1. Remove four bolts (A) securing cylinder bracket (B) to
the reel arm (C).
1024554
A
B
C
Figure 3.111: Right Reel Arm Cylinder in Aft
Position
2. Push reel back until bracket (B) lines up with the aft set
of holes in the reel arm (C).
3. Reinstall the four bolts (A) to secure bracket to reel arm
at new position.
OPERATION
