214683 103 Revision A
Reposition the left reel arm cylinder as follows:
NOTE:
Some reel components are not shown in illustrations for improved clarity.

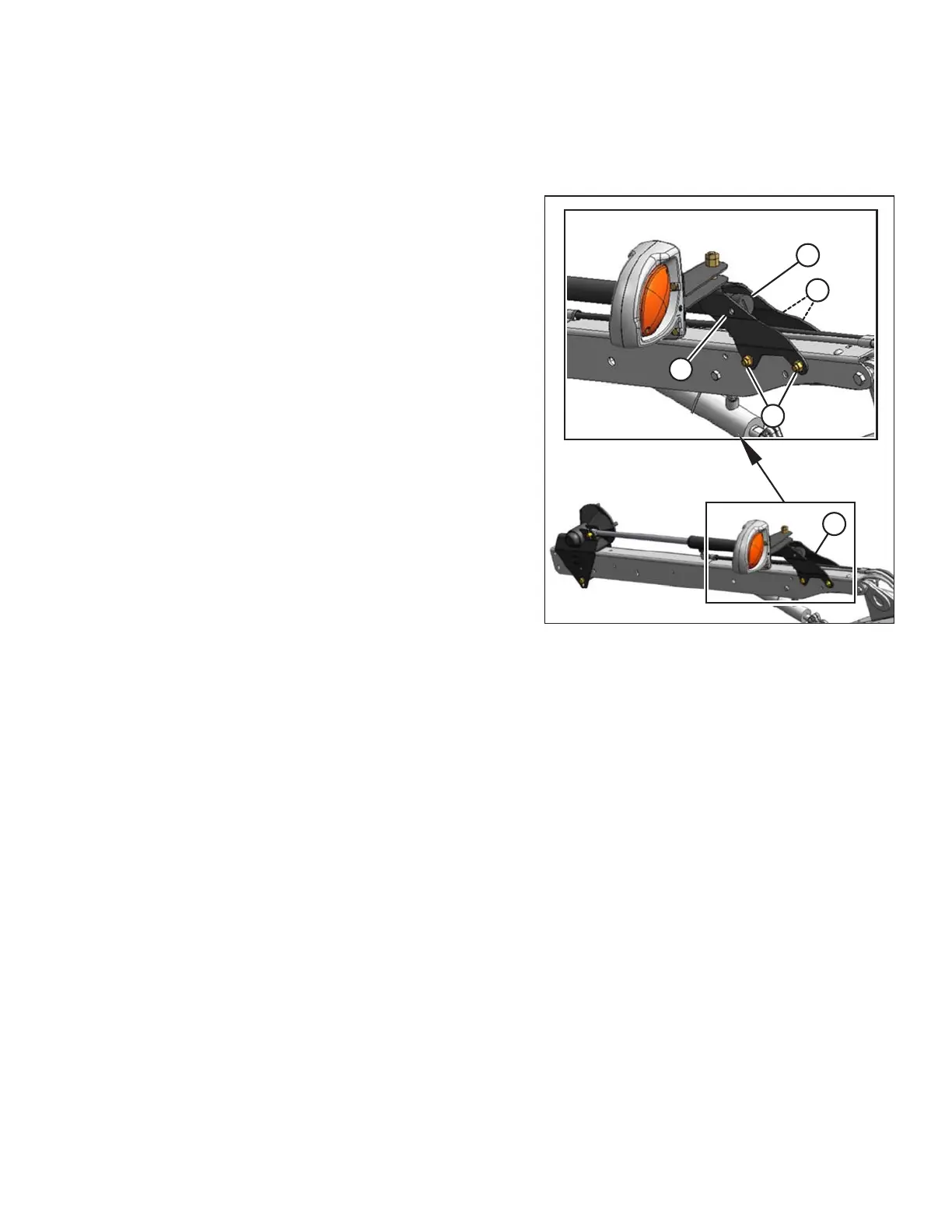

Figure 3.112: Left Arm – Forward Position
1. Remove pin (A) securing cylinder (B) to bracket/light
assembly (C).
2. Remove four bolts (D) securing bracket/light
assembly (C) to reel arm and remove bracket/light
assembly. Retain hardware.
3. Remove cable tie (not shown) securing harness to
bracket/light assembly (C) or to reel arm (if necessary).
4. Swivel light to working position as shown.
OPERATION
